Burkert Solenoid Valve 061321, 2 port(s) , NC, 24 V dc, 1/4in, Клапан

Burkert Solenoid Valve

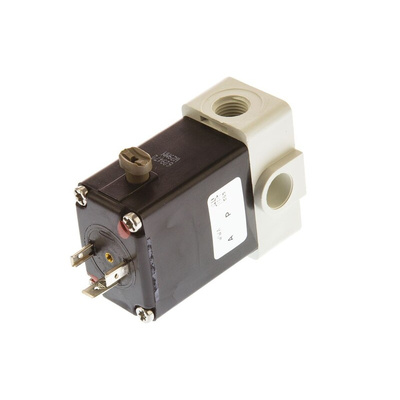

The Burkert 0124 series 1/4in G female solenoid valve has a supply voltage rating of 24VDC. This 2-port NC position valve is made of PP material for aggressive media. This direct-acting solenoid valve with separating diaphragm has pivoted armature with manual override. Its maximum opening and closing time are 20ms and 20ms. This valve is suitable for alkalis, acids to medium concentration, alkaline washing and bleaching agents.

Features and Benefits

Maximum working pressure is 3bar

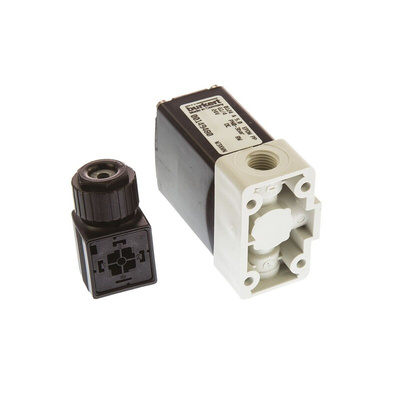

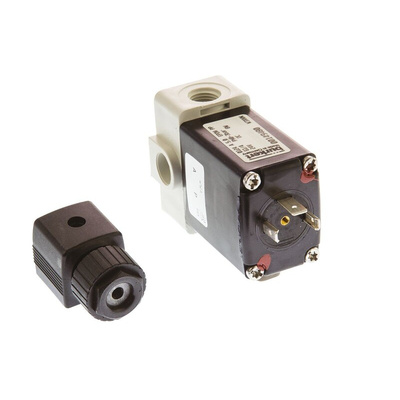

3-pin DIN connector can be positioned through 360° in 90° increments
Different circuit function
Duty cycle intermittent operation is 40% in 30 min
Flow factor(Kv) is 0.4m³/h
Operating temperature ranges between -40°C and 55°C
Power consumption is 8W DC
Vibration-proof and block screwed coil system
Zero head pressure capability

Certifications

IP65 rated

Datasheet
