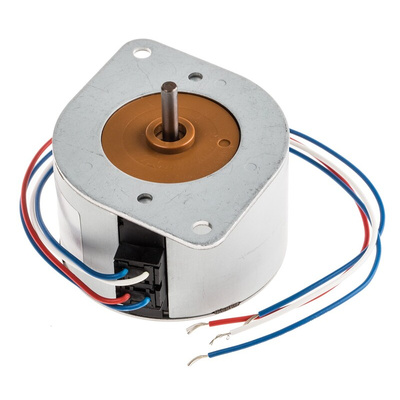

82530001, Crouzet 820000 Reversible Synchronous AC Motor, 1.37 W, 2 Phase, 24 Pole, 230 → 240 V, Двигатель

Single Voltage, Reversible

Speed of Synchronous motor = 60 x f (in Hz)/P,Where P = pairs of poles

Ideally suited for time driving in instrumentation, machine and process control
Chosen for the differing torque capabilities ranging from 12mNm up to 106mNm. Suitable for higher torque application than the dual voltage version
Designed for operation from a 220-240Vac. supply, but synchronous speed will be maintained to a much lower voltage, with a loss of working torque

Note

For phasing capacitors please see stock number 210-500 for example

AC Synchronous Motors

These synchronous motors are for direct driving from an a.c. supply. Ideally suited for time driving in instrumentation, machine and process control. The smaller units can be directly connected to the synchronous gearboxes (typical stock no. 332-868 etc).
