Burkert Solenoid Valve 078556, 3 port(s) , NO/NC, 24 V dc, 1/4in, Клапан

Burkert Solenoid Valve

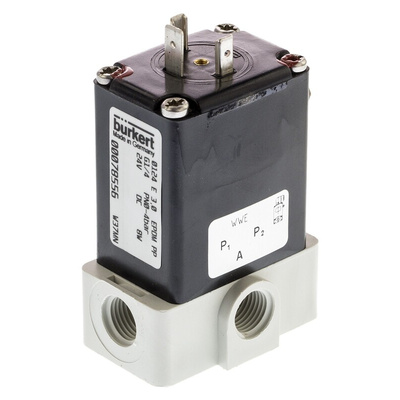

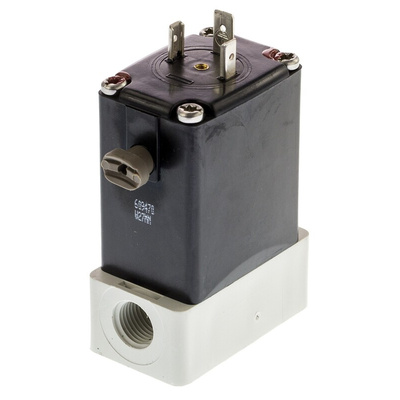

The Burkert 0330 series 1/4in G female solenoid valve has a supply voltage rating of 24VDC. This 3-port NO/NC position valve is made of PP material for aggressive media. This direct-acting solenoid valve with separating diaphragm has a pivoted armature with manual override. The maximum opening time of this valve is 20 milliseconds and the same is applicable for closing time. It is suitable for alkalis, acids to medium concentration, alkaline washing and bleaching agents.
Note:
BSP parallel ports suitable for use with RS stainless steel compression fittings

Features and Benefits

Maximum working pressure is 4bar

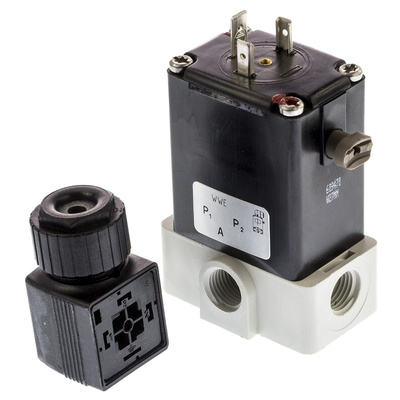

3-pin DIN connector can be positioned through 360° in 90° increments
Different circuit function
Duty cycle intermittent operation 40% in 30 minutes
Flow factor (Kv) is 0.25m³/h
Operating temperature ranges between -40°C and 55°C
Power consumption is 8WDC
Vibration-proof, block screwed coil system
Zero head pressure capability

Certifications

IP65 rated

Datasheet - Burkert 0330
