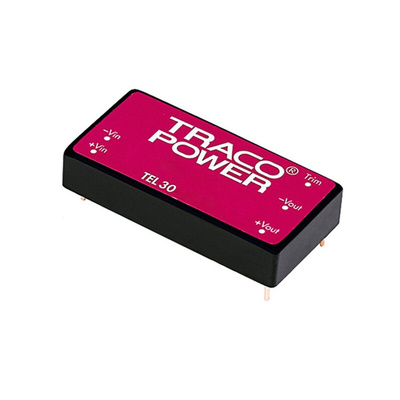

TEL 30-2412, TRACOPOWER TEL 30 DC-DC Converter, 12V dc/ 2.5A Output, 18 → 36 V dc Input, 30W, Through Hole, +71°C Max Temp, Преобразователь

Traco 30W Single/Dual Output High Power Density Regulated Isolated DC-DC Converter - TEL 30 Series

30W single/dual output high power density regulated isolated DC-DC converters with a wide voltage input range and shielded metal case. Typical applications for these high power density regulated isolated DC-DC converters include communication and networking systems, industrial electronics and distributed power architectures.

Products not recommended for new designs please refer to the alternative at the bottom of the page
High power density, 25.4x50.8x9.6mm package
Wide 2:1 input voltage range
Regulated outputs
Adjustable output voltage by using external resistors
High efficiency up to 88%
Under voltage shut-down, over-voltage, over-load and short circuit protection
Shielded metal case with insulated baseplate
Industry standard pin-out

Note

Derate 2% per °C above 50°C.
MTBF to MIL-HDBK-217E (25°C).

Standards

EN 60950-1, UL 60950-1, IEC 60950-1

Approvals

CSA
