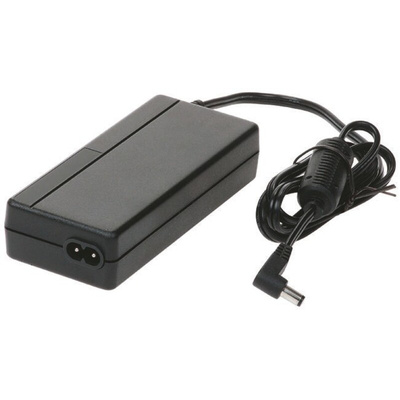

LFZVC90NS48E, EOS 90W Power Brick AC/DC Adapter 48V dc Output, 1.87A Output, Блок питания

EOS 80W to 90W Single Output Switch Mode Desktop Power Supply - ZVC Series

80 to 90W switch mode single output desktop power supply with an ultra miniature package and high power density. This range of switch mode single output desktop power supplies includes versions that are suitable for use as either a laptop power supply, netbook power supply or notebook power supply.

External switch mode desktop power supply
Very high efficiency, up to 92%
Ultra-miniature & lightweight
EMC compliance to EN 55022 Class B, FCC Part 15 Class B
Harmonic current compliance to EN 61000-3-2
Class II - double insulated
Fully regulated output
Short circuit, over-load and over-voltage protection
1 metre output lead with 2.54mm x 5.49mm centre positive right angled hollow coax output connector

Note

Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Power derates above 35°C to 45°C by 25%.
MTBF to MIL-HDBK-217F.

Standards

EN 60950, UL 60950 Class 2 SELV, IEC 950, CSA C22.2 No. 950

Approvals

UL/cUL recognised, TUV, Semko, Demko, CCIB, Fimko, Nemko, QAS, GOST, MITI

ZVC SERIES AC / DC Single Output Data Sheet
