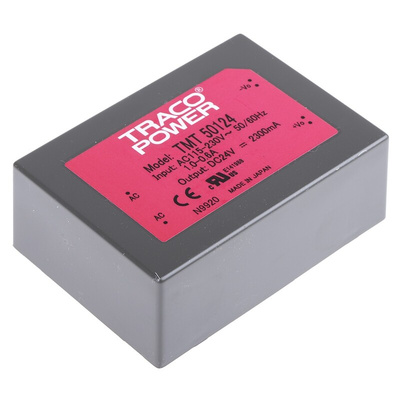

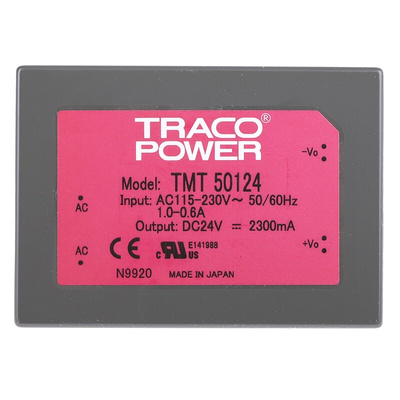

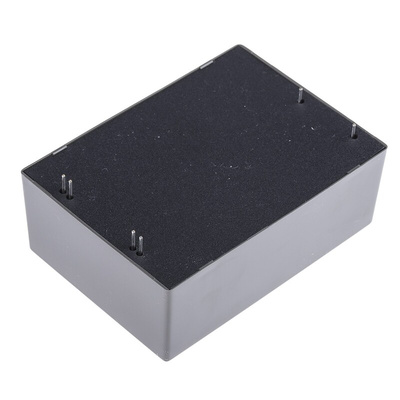

TRACOPOWER Switching Power Supply, TMT 50124, 24V dc, 2.3A, 50W, 1 Output, 85 → 264 V ac, 85 → 370 V dc, Источник питания

TRACOPOWER AC/DC Power Supply

The TRACOPOWER TMT series 50W single output AC to DC embedded switch mode power supply has an output current rating of 2300mA at 24VDC. It has the universal input supply voltage ratings from 85VAC to 264VAC and 85VDC to 370VDC. The PCB mount AC/DC power supply has a solder pins connection.
Note:
Manufacturer’s part numbers with a 'C' suffix denote chassis mounting types
De-rate by 2.5% per °C above 50°C
MTBF to IEC 61709

Features and Benefits

Input and output isolation is 4kVAC RMS
Lead-free design
Overload protection
Short circuit protection
Ultra compact, fully encapsulated power supply

Applications

Commercial
Industrial electronic equipment

Certifications

CB certified
CSA C22.2 No.60950-1-03
EN 55022 class B
FCC level B
IEC/EN 60601-1
IEC/EN 60950-1
Safety class II
UL 60601-1
UL 60950-1
UL approved

Datasheet

Industrial Power Solutions Catalogue

Selection Guide
