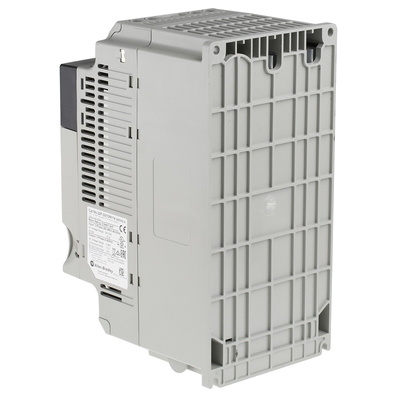

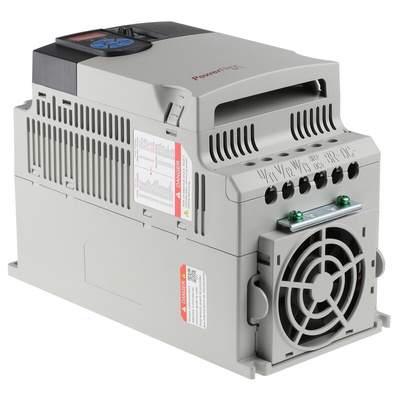

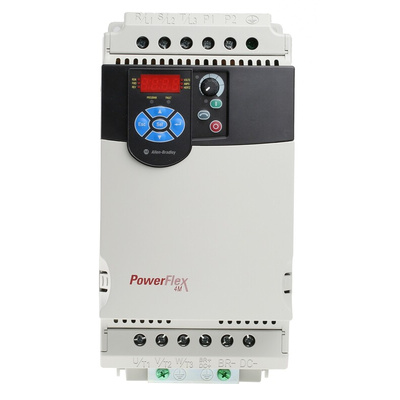

22F-D013N114, Allen Bradley Inverter Drive, 5.5 kW, 3 Phase, 480 V ac, 13 A, PowerFlex 4M Series

Allen Bradley PowerFlex 4M Triple Phase Input Frequency Controllers

Ensure precise and powerful motor speed control for your application with PowerFlex 4M Triple-Phase Input Frequency Controllers by Allen Bradley. These affordable, compact inverter drives are ideal for standalone machine level control. PowerFlex 4M drives offer feed through wiring and ease-of-programming to provide you with a streamlined, flexible, and highly efficient motor control solution.

This drive is available in three frame sizes: A, B, and C, with power ratings from 0.2 to 11 kW (0.25 to 15 Hp) and in voltage classes of 120, 240 and 480 volts. Its ventilation system is only activated during motor operation, and it is silent when stopped, ensuring long service life.

Features and Benefits:

• Power ratings from 0.37 to 11 kW in triple phase 400 V
• Pulse Width Modulation Frequency adjustable to 10 kHz for quiet operation
• DIN rail mounting feature on A and B frame drives
• Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
• Integral keypad included
• Ingress Protection level of IP20 with open type enclosure and slip compensation for enhanced stability
• Drive overload protection and ramp regulation
• Side-by-side Zero Stacking™ Drives for ambient temperatures up to 40 °C (104 °F)
• Integral RS-485 communications

What is an Inverter Drive?

An Inverter drive (also known as AC Drive, Variable Frequency Drive, or VFD) is a motor drive device which regulates the amount of power supplied to a motor, allowing for precise control of speed or torque to the motor to suit its application. They are situated between an electrical supply and a motor. Electrical motors run many things we use in our society today and inverter drives are used for speed control in a range of applications, such as simple fan and pump loads. Inverter drives are also used widely in industrial applications for high torque machine control. Most inverter drives now have features such as digital operation and LED displays allowing for easy set-up, monitoring, and adjustment of parameters by the user.

How does an Inverter Drive work?

Inverter drives are controlled by inputting specific frequencies or parameters into the device. When power goes through the drive the inverter adjusts the frequency and voltage that is supplied to the motor. They ensure that an electrical motor receives only the necessary amount of power it requires to function, in order to reduce waste or loss of electrical energy, thereby making it more efficient to run. They can also gradually ramp up power for a slower, safer machine start up. Inside the inverter, incoming AC power is converted to DC power via a rectifier made up of diodes, which is then smoothed to a clean, constant voltage by capacitors, and is then fed back out as AC power via output transistors.

Allen Bradley Inverter Drive, 480V AC, 5.5kW - PowerFlex 4M Series - 22F-D013N114

Use this inverter drive from Rockwell Automation's Allen Bradley range to achieve precise motor control. It ensures the motor receives only the right amount of power it needs to run, increasing efficiency and reducing energy waste. The device also ramps up power gradually for safer machine startup. This component's compact dimensions make it a good fit for setups with limited space. It has a power rating of 5.5kW (kilowatts), so it's suitable for driving conveyors and pump motors.

• Wide operating temperature range of -10°C to +50°C for use in harsh environments• IP20 (ingress protection) rated to withstand dust or objects larger than 12mm in size• Integral keypad for easy operation using the local potentiometer and control keys

Standards and Certifications

• IEC (International Electrotechnical Commission)• RoHS (Restriction of Hazardous Substances)

How does this inverter drive work?

This inverter drive converts incoming alternating current (AC) power to direct current (DC) power through a rectifier made up of diodes. This is then smoothed to a clean, constant voltage by capacitors and fed back out as AC power via output transistors.
