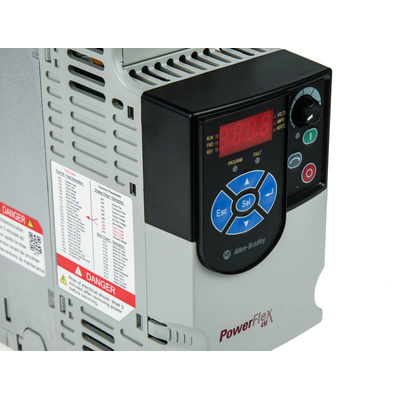

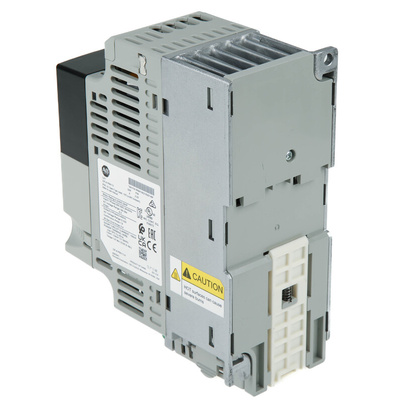

22F-A1P6N113, Allen Bradley Inverter Drive, 0.2 kW, 1 Phase, 240 V ac, 1.6 A, PowerFlex 4M Series

Allen Bradley PowerFlex 4M Single-Phase Input Frequency Controllers

Experience powerful and precise motor speed control with PowerFlex 4M Single-Phase Input Frequency Controllers by Allen Bradley. These compact, cost-effective inverter drives are perfectly suited for machine level control. PowerFlex 4M drives offer application flexibility, feed through wiring and ease-of-programming to provide you with a streamlined and highly efficient motor control solution.

This drive is available in three frame sizes: A, B, and C, with power ratings from 0.2 to 11 kW (0.25 to 15 Hp) and in voltage classes of 120, 240 and 480 volts. Its ventilation system is only activated during motor operation, and it is silent when stopped, ensuring long service life.

Features and Benefits:

• Pulse Width Modulation Frequency adjustable to 10 kHz for quiet operation
• DIN rail mounting feature on A and B frame drives
• Integral keypad included
• Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
• Side-by-side Zero Stacking™ Drives for ambient temperatures up to 40 °C (104 °F)
• Integral RS-485 communications
• Ingress Protection level of IP20 with open type enclosure and slip compensation for enhanced stability
•Drive overload protection and ramp regulation

What is an Inverter Drive?

An Inverter Drive (also known as AC Drive, Variable Frequency Drive, or VFD) is a motor drive device which regulates the amount of power supplied to a motor, allowing for precise control of speed or torque to the motor to suit its application. They are situated between an electrical supply and a motor. Electrical motors run many things we use in our society today and inverter drives are used for speed control in a range of applications, such as simple fan and pump loads. Inverter drives are also used widely in industrial applications for high torque machine control. Most inverter drives now have features such as digital operation and LED displays allowing for easy set-up, monitoring, and adjustment of parameters by the user.

How does an Inverter Drive work?

Inverter drives are controlled by inputting specific frequencies or parameters into the device. When power goes through the drive the inverter adjusts the frequency and voltage that is supplied to the motor. They ensure that an electrical motor receives only the necessary amount of power it requires to function, in order to reduce waste or loss of electrical energy, thereby making it more efficient to run. They can also gradually ramp up power for a slower, safer machine start up. Inside the inverter, incoming AC power is converted to DC power via a rectifier made up of diodes, which is then smoothed to a clean, constant voltage by capacitors, and is then fed back out as AC power via output transistors.

Allen Bradley Inverter Drive, 0.2kW, 1.6A - PowerFlex 4M Series - 22F-A1P6N113

Monitor and control your industrial motor speeds to a high degree of accuracy with this inverter drive from Rockwell Automation's Allen Bradley range. It limits the power supply to the motor, providing only what it needs to run. This both enhances energy efficiency and reduces energy loss. The unit can also provide the high power current frequently used for starting up motors safely. This drive comes with an integrated keypad adapter that you can use to control it with ease. A power rating of 0.2kW means it's suitable for light-duty applications such as in small fans.

• IP20 (ingress protection) rated to withstand particles larger than 12mm in size• Compact dimensions of 174 (length), 72 (width) and 136mm (depth) to fit into small enclosures• Wireless interface module (WIM) enables communication with computers for easy configuration and data transfer• Pulse width modulation (PWM) frequency adjustable to 10kHz for quiet operation

Standards and Certifications

• RoHS (Restriction of Hazardous Substances)• IEC (International Electrotechnical Commission)• UL (Underwriters' Laboratory)

What could cause this drive inverter to fail?

A number of factors could cause failure in this drive inverter. These include loose wiring connections, overcurrent faults and high starting load currents.

Datasheet

Quick Start POWERFLEX 4M

Catalogue - PowerFlex 4M Adjustable Frequency AC Drives
