RSNJ3FC6, Neutrik Jack Connector 6.35 mm Locking Jack Stereo Socket, 3Pole

Neutrik Stereo Locking Jack

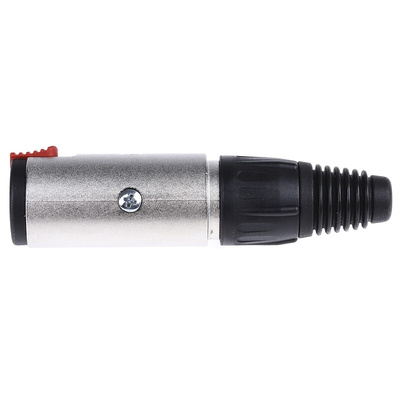

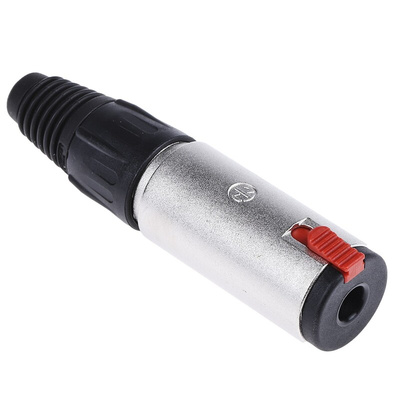

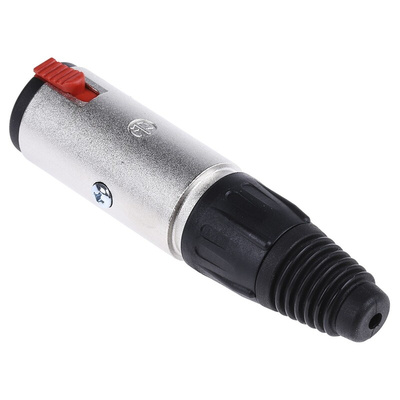

The Neutrik 6.35mm 3-pole female stereo locking jack has a current rating of 10A. It provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing the red release tab. The housing is made of zinc aluminium copper alloy material with silver contacts.
Note:
The ring and sleeve must be connected to configure the sockets for use with two-pole plugs. ’B’ gauge (BPO type 316, stock nos. 448-187 and 448-193) are also suitable for use with these sockets but will not latch.
6.35mm Neutrik
0.25 in. Professional: Jack connectors for use where applications demand a rugged connector, built to exacting standards.

Features and Benefits

Securely locking cable jack
Mates with all the mono or stereo plugs
Extremely robust and reliable
Excellent Neutrik cable retention
For cable outer diameter up to 8mm

Certifications

IEC 60603-11
EIA RS-453 compliant
