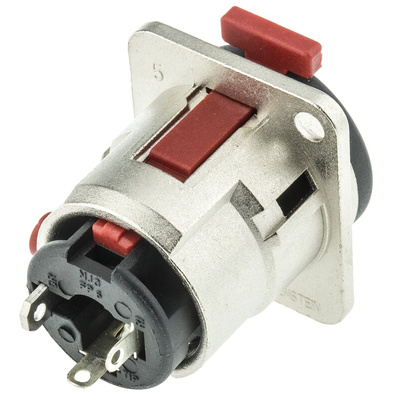

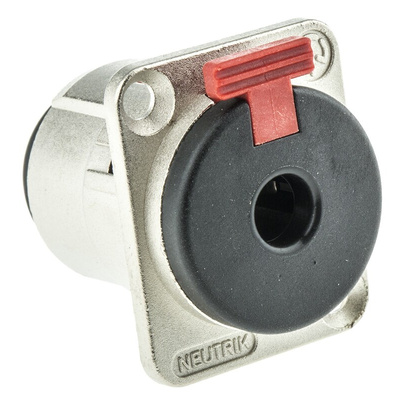

NJ3FP6C, Neutrik Jack Connector 6.35 mm Panel Mount Stereo Socket, 3Pole 10A

Neutrik Stereo Locking Jack

The Neutrik 6.35mm 3-pole stereo locking jack with solder terminations has a current rating of 10A. It is designed to mount in the same hole cut-out as our 'D' and NL4MP series of panel mount receptacles.
Note:
The ring and sleeve must be connected to configure the sockets for use with two-pole plugs. ’B’ gauge (BPO type 316, stock nos. 448-187 and 448-193) are also suitable for use with these sockets but will not latch
6.35mm Neutrik
0.25in professional jack connectors for use where applications demand a rugged connector, built to exacting standards

Features and Benefits

Nickel shell with silver contacts
Mates with all the mono or stereo plugs
Securely push release mechanism locking chassis jack
Operating temperature ranging between -20°C and 65°C

Certifications

IEC 68- 2-20
IEC 60603-11
EIA RS 453
