RS PRO Right Angle DC Socket Rated At 1.0A, 12.0 V, PCB Mount, length 14.5mm, Nickel, Разъем

PCB Mount DC Power Sockets

This range of PCB-mounted sockets is brought to you under the trusted RS Brand. The mounted power sockets are fitted with a nickel plated N/C contact and are compatible with a 2.1mm dc plug. With sturdy tabs, this versatile range of sockets ensures a reliable and secure connection to printed circuit boards.

The RS Pro range of PCB Mount DC Power Sockets includes the following products:

• Stock No. 487-832 features a screw-lock capability and matches perfectly to stock number 487-820 cable-mounted plug
• Stock No. 448-382 is a right angled PCB mount dc power socket
• Stock No. 448-376 is a straight PCB mount dc power socket

Warning

Not to be used as mains connectors

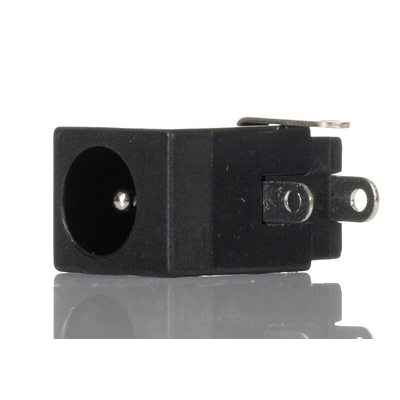

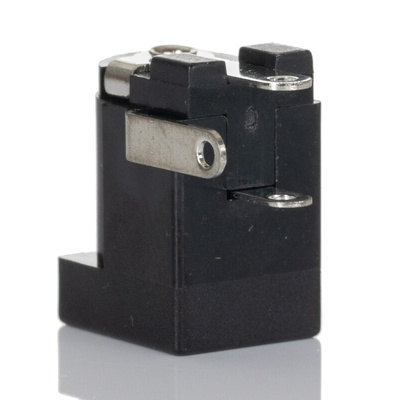

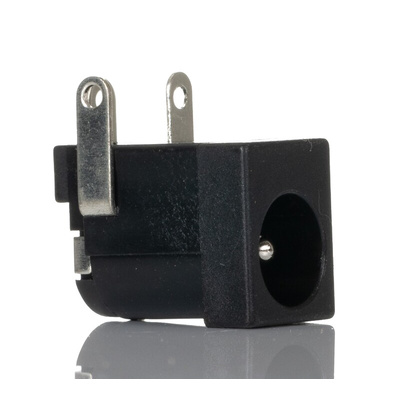

PCB Mount Right Angle DC Power Socket.

RS Pro PCB Mount DC power socket is a right angle socket connector complete with an N/C contact and designed to be used with a 2.1 mm plug. The contacts for the DC power sockets are nickel plated with brass contact material and have a current rating of 1 A. This PCB Mount socket has sturdy tabs providing reliable and secure connection to printed circuit boards. DC Power sockets are also known as a Barrel Connector or Tip connectors.

Features and Benefits.

•DC Power socket.
•Designed to be used with 2.1 mm Plug.
•Right angle.
•3 PCB Mounting contacts.
•N/C contacts (normally closed).
•Nickel plated contacts.
•Brass contact material.
•Used with a 2.1 mm plug.
•PIN Diameter 2.1 mm.
•Screw and lock capability.
•1 A Current rating.
•Voltage rating 12 V dc
•Sturdy tabs provide secure connection.
•Connector bodies are moulded ABS Plastic.

The PCB Mount power sockets are Not to be used as a mains connector.

Pack Size.

•Supplied in packs of 10 DC Power Sockets.

Typical Applications.

You’ll find that DC Power Sockets are usually embedded into small-medium electronic appliances which could be connected to a mains power supply. DC Power Sockets are designed to ensure a safe connection, with smooth disconnect and connect action which is why they are typically used to power and change particular portable computers, electronic instruments and sound systems.

RS PRO DC Power Socket Products.

•Stock No. 487832 features a screw-lock capability and matches perfectly to stock number 487820 cable-mounted plug.
•Stock No. 448382 is a right angled PCB mount dc power socket.
•Stock No. 448376 is a straight PCB mount dc power socket.

Plugs & Sockets

Miniature plugs suitable for powering portable radios, calculators plus test and measurement instruments from a fixed, low-voltage d.c. source. Chassis mounting sockets for the 2.1mm plugs and adaptor leads terminated with 2.1mm and 2.5mm plugs and sockets are also available. Contacts are nickel/silver plated brass.Connector bodies are moulded in ABS plastic

RS Pro Datasheet
