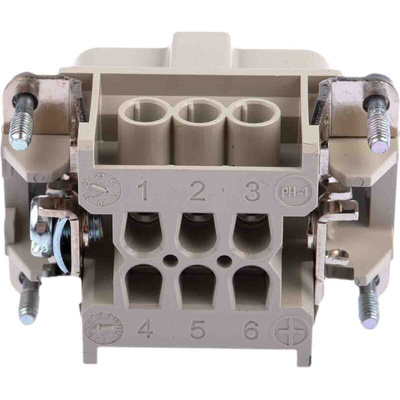

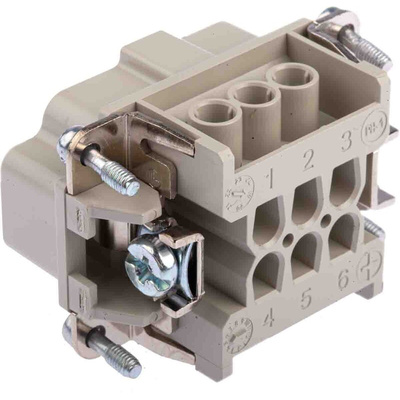

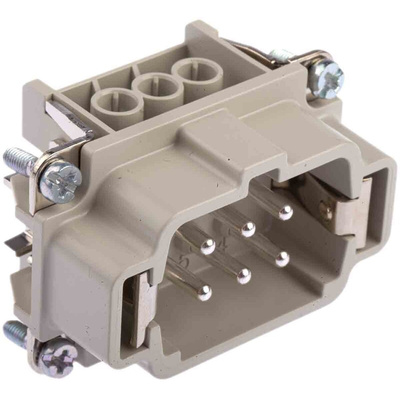

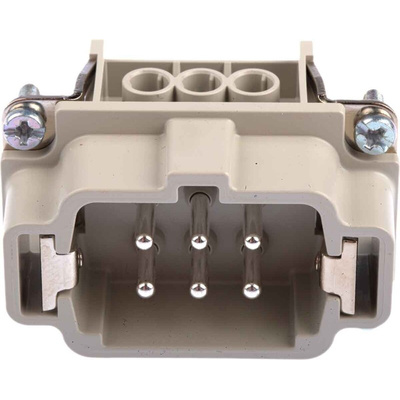

10190000, Epic Contact Connector Insert, 6 Way, 16A, Male, H-BE, Cable Mount, 600 V

LAPP Power Connector, 6 Contacts, 2 Rows - EPIC Series - 10190000

Use this insert from LAPP's EPIC series to make reliable heavy-duty power connections in your industrial applications. It's designed for use with hoods and bases from the H-BE range to make connections that won't come loose or be penetrated by dust, dirt or moisture. The screw connectors help you make a quick and secure electrical connection without specialist tools. This cable-mount insert is interchangeable with the crimp, cage clamp and push-in inserts from the same series to help you build a versatile system.

Features & Benefits

• Glass-reinforced thermoplastic housing is robust and heat-resistant
• Wire protection leaves guard against corrosion
• Silver-plated copper-alloy contacts offer high conductivity

Applications

• Rail sector
• Lighting and sound systems
• Mechanical engineering
• Plastics industry

What size wires can this insert accommodate?

This insert can accept wires sized between 0.5mm² and 2.5mm².

Inserts (Screw, Crimp & Cage Clamp)

UL E75770

CSA 53004

EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications

EPIC H-BE Kontakteinsätze / Contact Inserts / Inserts le Contact

Datasheet - EPIC H-BE 6
