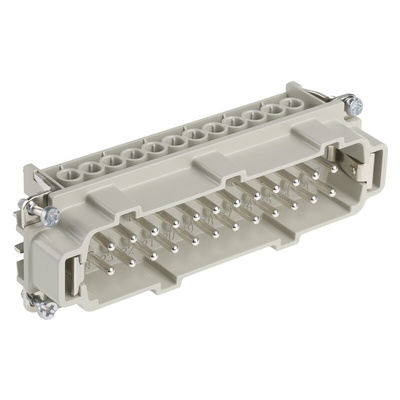

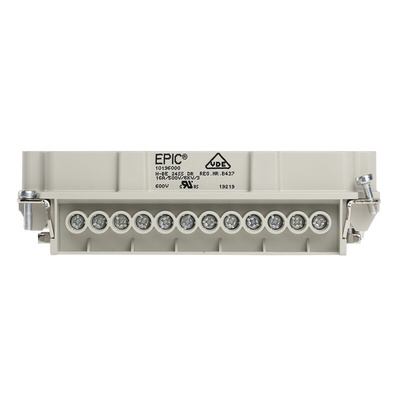

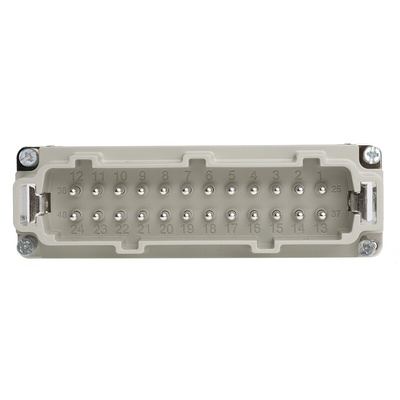

10196000, Epic Contact Connector Insert, 24 Way, 16A, Male, H-BE, Cable Mount, 600 V

LAPP Cable Mount Connector Insert, 24 Contacts, 16A Current Rating - Epic Contact Series - 10196000

Use this heavy-duty connector insert from LAPP to link power cables to your industrial equipment. With its 24-way design, it lets you connect up to 24 wires to a terminal at the same time, reducing the space needed for cabling. The copper alloy contacts combine high conductivity with a low resistance of 2mΩ to give you a reliable connection. As it has screw terminals, this unit is easy to install without specialist tools.

Features & Benefits

• Current rating of 16A makes it suitable for high-power applications
• Polycarbonate housing material for durability and resistance to impact
• Mechanical service life of 500 operations for long-term performance
• Broad operating temperature range of -40°C to +100°C for use in demanding conditions

Applications

• Machine assembly
• Mining and construction sites

What's the voltage rating of this connector insert?

This insert has a 600V voltage rating, so it's a suitable option for medium-voltage applications.

Inserts (Screw, Crimp & Cage Clamp)

UL E75770

CSA 53004

EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications

EPIC H-BE Kontakteinsätze / Contact Inserts / Inserts le Contact

Datasheet - Series EPIC H-BE

Instruction Sheet - EPIC H-BE 6-48 SS/BS
