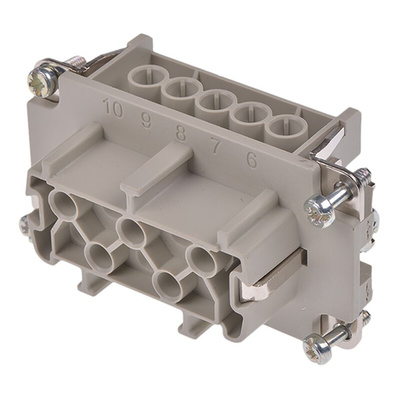

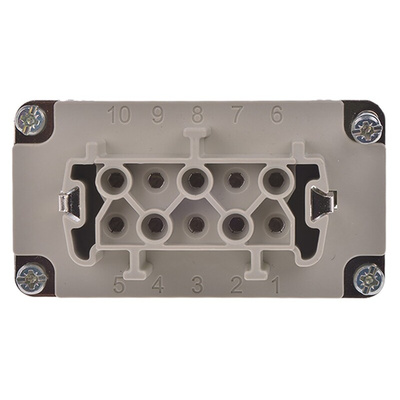

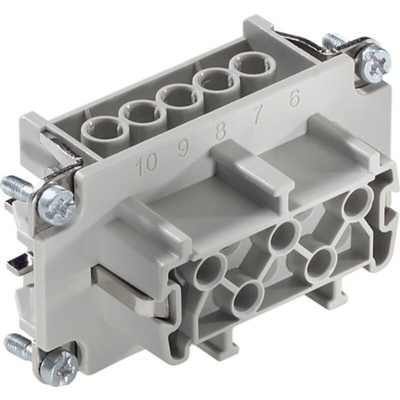

10193000, Epic Contact Heavy Duty Power Connector Module, 16A, Female, H-BE Series, 10 Contacts

LAPP Heavy Duty Power Connector Module, Screw Terminals, Silver-Plated Contacts - EPIC Series - 10193000

Looking for a tough-as-nails electrical connector? Try this heavy duty power connector module from LAPP. It has screw terminals that hold wires firmly in demanding operating conditions, so you can count on it to keep your kit reliably connected. As the unit accepts wires ranging in diameter from 0.5 to 2.5mm², you have a choice of conductors that best suit your needs. Its silver-plated contacts are highly conductive, giving you the benefit of optimal electrical flow.

Features & Benefits

• 16A current rating, making it suitable to use in challenging power applications
• Wide operating temperature range between -40°C and +100°C, for compatibility with challenging settings
• Mechanical operation of up to 500 cycles supports an extended service life

Applications

• Mechanical engineering
• Rail industry
• Lighting and sound systems

Is this connector module flame-retardant?

Yes, for your peace of mind, this product is flame-retardant, so it won't catch alight in the event of a fire.

Inserts (Screw, Crimp & Cage Clamp)

UL E75770

CSA 53004

EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications

EPIC H-BE Kontakteinsätze / Contact Inserts / Inserts le Contact

Datasheet - 10193000

Manual - Assembly Instructions
