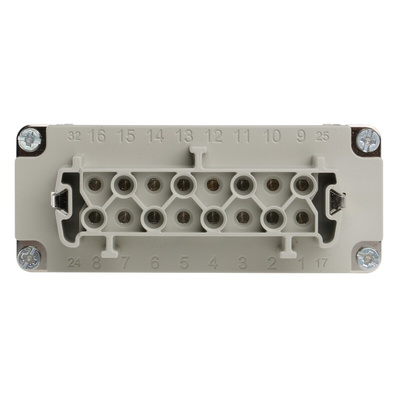

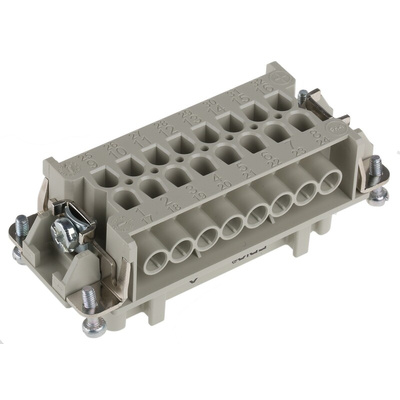

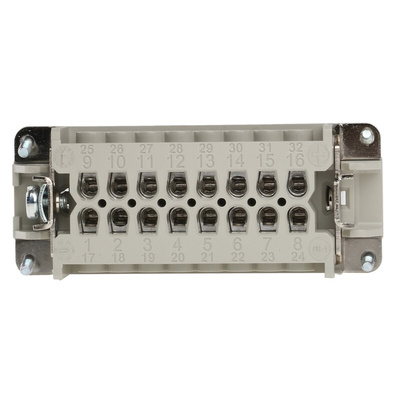

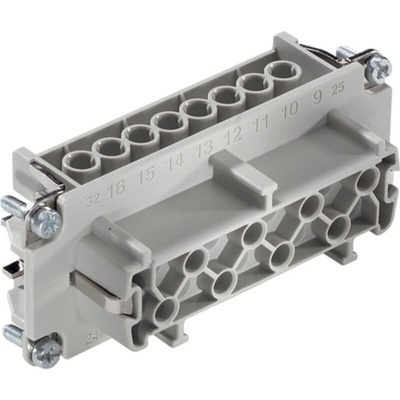

10195000, Epic Contact Heavy Duty Power Connector Module, 16A, Female, H-BE Series, 16 Contacts

LAPP Heavy Duty Power Connector Module, Silver-Plated Contacts, 2 Rows - EPIC Series - 10195000

This heavy-duty power connector module from LAPP is built to stand the test of time. It comes with a rugged PA housing that holds up to demanding conditions. Rated for 16A and 600V and protected against electrical surges of up to 6kV, it provides rock-solid service in demanding applications. You can trust it to bear the brunt of brief power spikes without losing reliability or performance. For safety, the unit is flame-retardant, so there's no chance of it catching alight in the event of a fire.

Features & Benefits

• Broad operating temperature range between -40°C and +100°C, making it compatible with extreme locations
• Screw terminals hold conductors securely, even in vibrating conditions
• Highly conductive silver-plated contacts, for optimal electrical flow

Applications

• Automotive manufacturing
• Rail transportation
• Mechanical engineering

What's the expected lifespan of this power module?

This module has a mechanical lifespan of up to 500 cycles to deliver an extended service life.

Inserts (Screw, Crimp & Cage Clamp)

UL E75770

CSA 53004

EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications

EPIC H-BE Kontakteinsätze / Contact Inserts / Inserts le Contact

Datasheet - 10195000

Manual - Assembly Instructions
