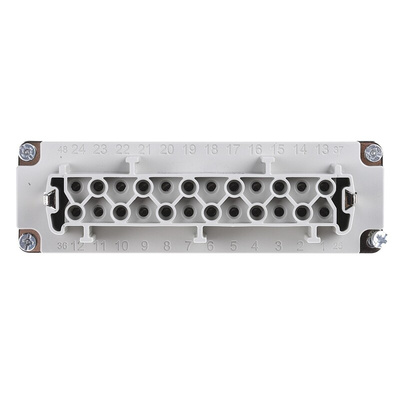

10197000, Epic Contact Heavy Duty Power Connector Module, 16A, Female, H-BE Series, 24 Contacts

LAPP Heavy-Duty Power-Connector Insert, 24 Contacts, 16A Current Rating - Epic Contact Series - 10197000

Add heavy-duty power capabilities to your system with this female connector insert from LAPP. Its copper alloy contacts are silver-plated for extra conductivity, so you can be sure of a reliable power connection. Designed for 24-pin plugs, the module is ideal for large appliances with intense energy demands. The receptacle's 16A current rating indicates fast power flow for efficient equipment performance. For added convenience, the socket features an integrated protective earth connection to reduce the need for extra wiring.

Features & Benefits

• IP65 rating indicates the component is dust-tight and protected against low-pressure water sprays
• Polycarbonate body material insulates against overcurrents for improved safety

Applications

• Control cabinets
• Lift systems
• Rail industry

Do I need any special tools to mount this receptacle?

As the socket comes with integrated screws, you only need a screwdriver for assembly.

Inserts (Screw, Crimp & Cage Clamp)

UL E75770

CSA 53004

EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications

EPIC H-BE Kontakteinsätze / Contact Inserts / Inserts le Contact

Datasheet - Series EPIC H-BE

Instruction Sheet - EPIC H-BE 6-48 SS/BS
