PX0686, Bulgin C14 Cable Mount IEC Connector Male, 10A, 250 V, Разъем

Rewireable IEC Plugs (C14)

This Bulgin brand IEC C14 plug is a cable mounted connector that is compatible with C13 plugs, meaning it has a wide variety of applications, including desktop computers and instrument amplifiers. The accessible screw terminals result in a connector that is convenient to rewire if necessary.

C14 Options include:
295-8591 – Straight IEC Connector Male 10A, 250V
295-8614 – Right Angle IEC Connector Male 10A, 250V
449-938 - Right Angle IEC Connector Male, 10A, 250 V
449-922 – Straight IEC Connector Male, 10A, 250 V

Note

Retaining clip available separately: RS stock no. 195-928.

Approvals

UL recognised component, CSA certified, VDE, IMQ, BSI

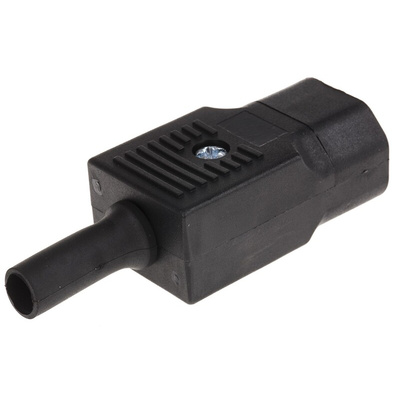

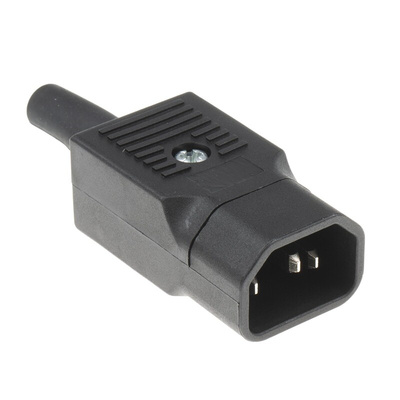

449-922 - Bulgin IEC Plug

The Bulgin IEC plug has a straight male C14 connector and a cable mount device. The plug connector is compatible with the C13 plug. It has a voltage rating of 250V ac and current rating of 10A.

Note:
Retaining clip is available separately.

Features and Benefits

Black straight plug
Easy to connect and rewirable
Screw terminal
Contact resistance is less than 10mΩ
Insulation resistance is greater than 10⁴MΩ
Operating temperature ranges between -40°C and +70°C
Withdrawal force 10N to 50N
Mouldings – Nylon for durability and safe operation, Flammability Rating UL94V-0
Contacts – Brass, Nickel Plated

Applications

Domestic appliances
Electrical appliances
Instrumentation amplifiers
Computer hard drives

Certifications

UL approved
CSA certified
VDE
SEMKO
IMQ

Approvals

UL recognised component, CSA certified, VDE, SEMKO, IMQ

DEMKO 115467

UL E70394
