62GB-585-08-33P, Amphenol Limited Cable Clamp

0450427
Номер производителя: 62GB-585-08-33PПроизводитель: Amphenol Limited
Цена за шт.
5647.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

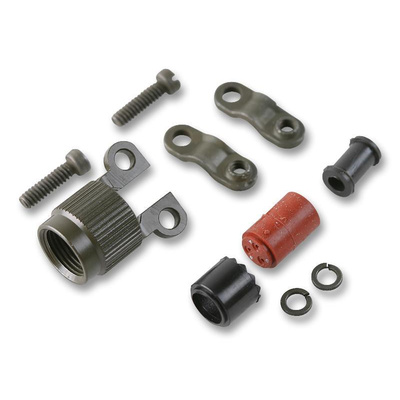

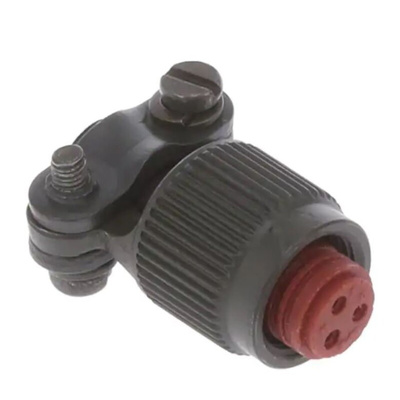

Amphenol Cable Clamp

The Amphenol 62GB series black cable clamp is a 3-way plug with grommet and nut. This strain relief clamp prevents the flexing of wires near the risers avoiding the risk of leaks. The adjustable clamp prevents the flexing of wires in the grommet nut that maintains sealing integrity and offers strain relief. It is used for miniature bayonet lock connectors.
Amphenol 62GB series cable clamp with strain relief
From Amphenol, this strain-relief cable clamp is for use with the 62 B series of MIL-spec connectors. It comes complete with a grommet nut. The adjustable clamp prevents the flexing of wires in the grommet nut that maintains sealing integrity as well as offering strain relief.
62 GB (Olive Drab)
high-quality bayonet locking connectors that have been designed to meet the requirements of BS9522 FOO17, Def Stan 59-35 and MIL-C-26482E. The connector shells are machined from aluminium alloy bar to ensure high strength. A zinc cobalt plating provides a resilient, durable and long-lasting finish that meets the requirements of the EC Directive for cadmium-free products. These solder termination connectors are all provided with a normal orientation of the inserts. It is suitable for applications that require high-quality connectors. This range offers standard signal pin and power pin type platforms.

Features and Benefits

Aluminium clamps
Connector shell size is 8

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Техническая спецификация
pdf62GB-585 Series Connector Data
pdfAmphenol 62GB Series
