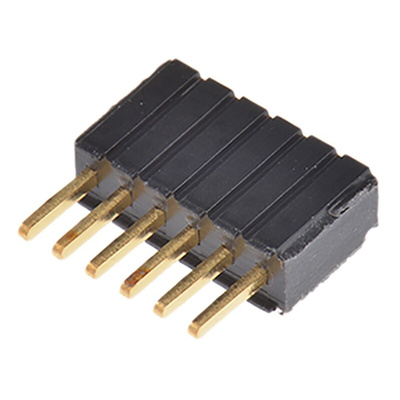

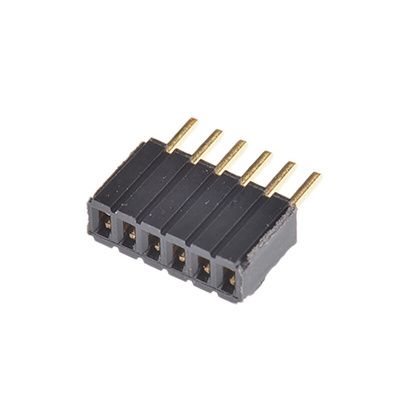

SLM-106-01-G-S, Samtec Straight Through Hole Mount PCB Socket, 6-Contact, 1-Row, 1.27mm Pitch, Solder Termination

Samtec PCB Socket, 1A Current Rating, Phosphor Bronze Contact Material - SLM Series - SLM-106-01-G-S

Hook up two circuit boards in a snap with this PCB socket from Samtec. Its high-retention Tiger Buy contacts ensure a reliable connection, even in harsh operating conditions. A pitch of 1.27mm keeps the unit compact, so it's a sure fit when you need to link equipment in crowded setups. As it's insulated with black glass-filled polyester, there's minimal risk of unexpected jolts from electric shocks. A low single-contact insertion force of just 2.22N means you won't get worn out when you're connecting your circuit boards.

Features & Benefits

• Gold-plated phosphor bronze contacts are corrosion-resistant and highly conductive for efficient signal transmission
• Suitable for use in harsh conditions, thanks to its wide operating temperature range between -55°C and +125°C
• Compatible with connectors in the HTMS, HMTMS, MTMS, DWM, FTR, HDWM and TMS series for versatility

Applications

• Aerospace engineering
• Medical equipment
• Pharmaceutical industries
• Food and beverage manufacturing

How do I mount this PCB socket?

This product is designed for through-hole mounting, so it slots neatly onto a board and gives you the advantage of a secure and durable connection.

SLM Series 1.27mm Sockets Data Sheet
