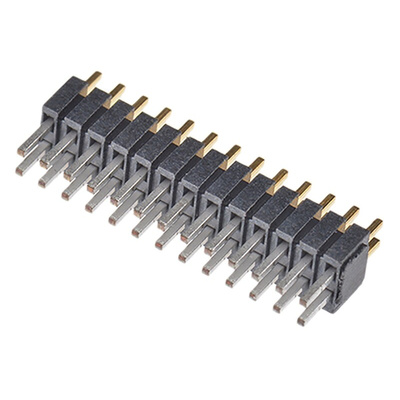

FTSH-113-02-F-D, Samtec FTSH Series Straight Surface Mount Pin Header, 26 Contact(s), 1.27mm Pitch, 2 Row(s), Unshrouded

Through-Hole Mount Micro Headers - FTSH Series

This FTSH Series Micro Strip connector header is a 1.27 mm pitch, horizontal through-hole mount. The 0.4 mm square by 3.05 mm long posts of this FTSH Series Micro Strip connector has 0.25 μm Gold plating with the tails being Matte Tin plated. The FTSH Series of 1.27 mm pitch micro terminal strips can be mated with appropriate socket strips or IDC cable assemblies.

Insulator material: Black LCP
Current rating 1.75 A at 80 °C
Operating temperature -55 to 125 °C

Note

FTSH Series SMT Terminal Strips mate with:
FFSD Series IDC cable assemblies, see stock number 159-880 typical.
CLP Series micro socket strips, see stock number 481-4695 typical.
FLE Series socket strips, see stock number 766-8959 typical.

FTSH Series 1.27mm Micro Header Connectors Data Sheet
