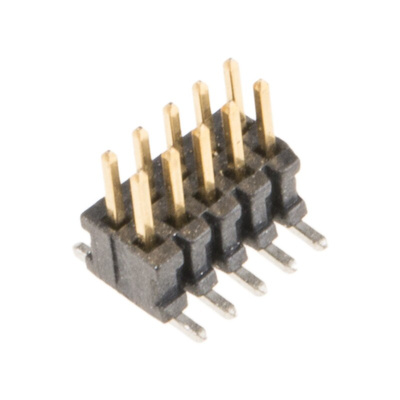

FTSH-105-01-L-DV, Samtec FTSH Series Straight Surface Mount Pin Header, 10 Contact(s), 1.27mm Pitch, 2 Row(s), Unshrouded

Samtec Pin Header, Phosphor Bronze Contact Material, Surface Mounting - FTSH Series - FTSH-105-01-L-DV

Looking for a mate for your IDC socket? This pin header from Samtec is an ideal match. It's compatible with the FFSD and FFTP ranges of cable assemblies to make board-to-board and wire-to-board connections a cinch. For versatility, you can also use it with socket strips in the CLP and FLE series. A low pitch of 1.27mm means it takes up minimal space, giving you flexibility when setting up your circuits. As the gold-plated phosphor bronze contacts are highly conductive and corrosion-resistant, you benefit from optimal electrical flow. Thanks to its black liquid-crystal polymer insulation, you can rest assured that you're protected against electric shocks when handling this header.

Features & Benefits

• Safe for use in demanding conditions, thanks to a wide operating temperature range between -55°C and +125°C
• Current rating of 3.3A per pin for use in demanding systems

Applications

• Industrial automation
• Military applications
• Aerospace engineering
• Testing and instrumentation

What termination method does this pin header use?

This pin header uses solder termination, so you can create a secure connection that doesn't shake loose, even in the event of heavy vibrations.
