RS PRO Insulated, Tin Crimp Pin Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 1.9mm Pin Diameter, 12mm Pin Length, Red, Разъем

0452631
Производитель: RS PRO
Цена за шт. (норма упаковки 100 шт)
56.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

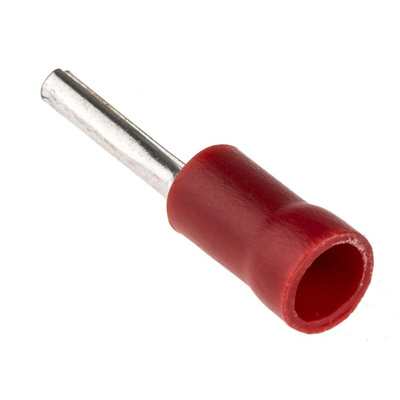

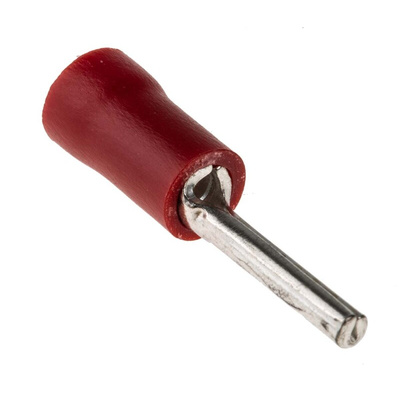

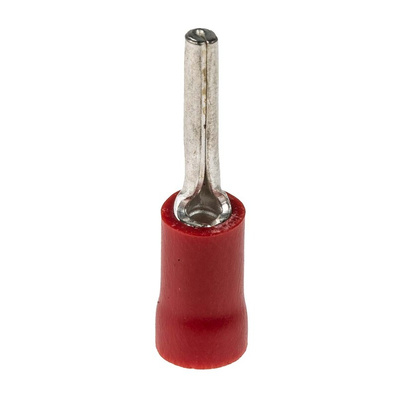

RS PRO Insulated, Tin Crimp Pin Connector, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, 1.9 mm Pin Diameter, 12 mm Pin Length, Red

This pin connector from RS PRO lets you securely and quickly terminate stranded-single wire electrical connections. The air-tight crimping prevents any moisture or oxygen from getting through, giving the metal interior complete protection from corrosion.
As the contacts are made from tin-plated copper, the crimp blade guarantees a strong electrical connection. The connector end is insulated with PVC (polyvinyl chloride), which keeps the connection protected from mechanical and chemical damage. The red colour of the insulation also makes it easy to colour-code your wiring for ease of identification.
This type of connector is commonly used by electricians thanks to its versatility and ease of use. It's suitable for use with wires ranging in size from 22 to 16 AWG (American Wire Gauge), making it useful for different applications.

Features and Benefits

• Red colour
• Copper contact material
• Tin contact plating
• Insulated
• PVC (polyvinyl chloride) insulation material
• Maximum wire size of 16 AWG (American Wire Gauge)
• Minimum wire size of 22 AWG (American Wire Gauge)
• Maximum wire size of 1.5 mm²
• Minimum wire size of 0.5 mm²
• Overall length of 22 mm
• Pin diameter of 1.9 mm
• Pin length of 12 mm
• Unshrouded

Техническая спецификация
pdfDatasheet
