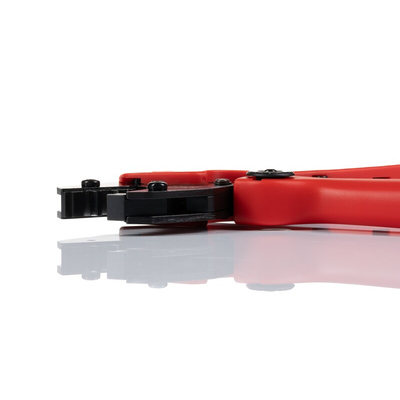

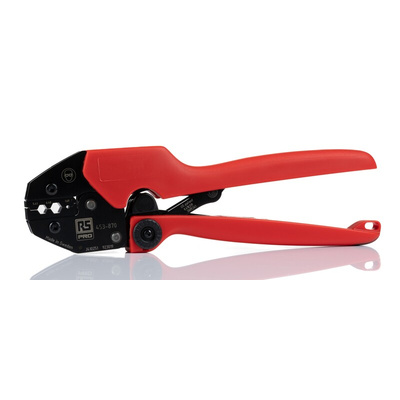

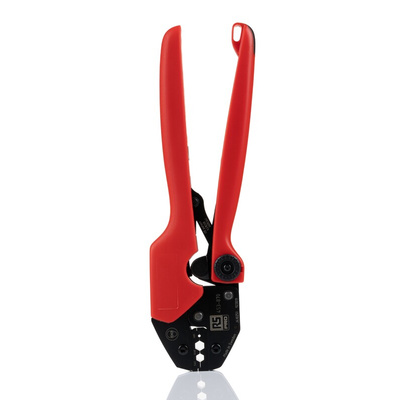

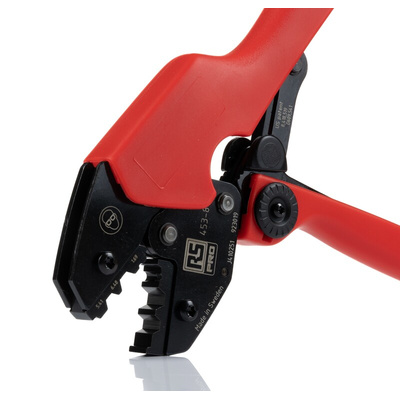

RS PRO Hand Ratcheting Crimp Tool for Coaxial Connectors, Обжимные клещи

RS PRO Ratcheting BNC/ TNC Crimp Tool

A simple and hardwearing ergonomic hand crimp tool for the creation of BNC and TNC coaxial cable assemblies. Producing 5.41 mm, 6.48 mm, 1.69 mm/.255in, 0.213in, 0.067in hexagon shaped crimps with the minimum of effort and suitable for either right or left handed operation.

Suitable for the following cables

RG 58, RG 59, RG 62, RG 71, RG108A/U, RG142B/U, RG210/U, RG223/U, RG302/U, RG58C/U, RG59B/U, RG62A/U, RG62B/U, RG71B/U, Thinnet (10Base2

Features and Benefits

• Dimensions of 204 x 76 x 22mm


• Non-slip main handle and low friction moving handle ensure a comfortable hand grip


• Provides two-hand grip in the final phase of crimping, increasing comfort and productivity


• Unique mechanism significantly reduces hand force required


• The non-slip pad holds the tool in place on a work surface for extra leverage


• Full cycle crimp mechanism to ensure consistent, reliable crimp


• Ratchet release mechanism to clear miscrimps and obstructions


• Precision eccentric adjustment for consistent performance and ability to calibrate


• Hole in handle allows attachment of safety strap for working overhead


• Lifespan exceeds 50000 cycles


• High strength hardened Swedish steel construction

What is the difference between un-insulated and insulated crimp tools?

Un-insulated crimp tools are typically used for general applications, whereas the insulated crimp tools have been VDE tested up to 1000 V, designed for use where electrical current is present.

The Importance of a High-Quality Crimp

When a crimping tool is used on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas-tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas-tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage.
