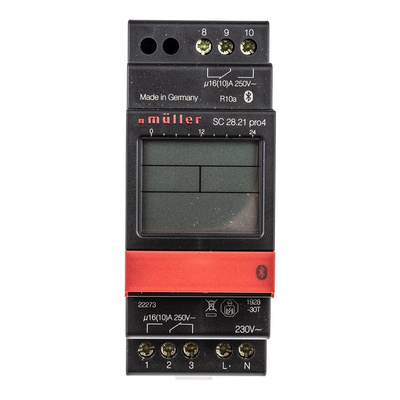

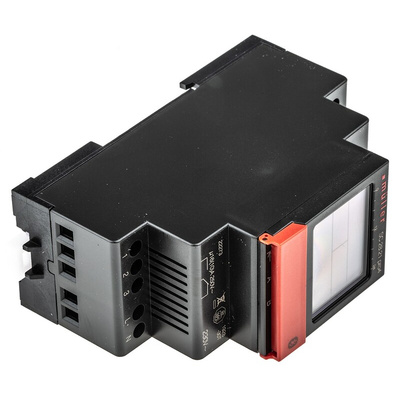

SC 28.21 pro 230V, Muller 2 Channel Digital DIN Rail Time Switch Measures Minutes, 230 V ac

SC 28.21 pro

Holiday function
Permanently ON or OFF with manual switch
Switching capacity 16A per channel
Manual override
Unrestricted block programming of days
Fully automatic daylight saving time
Elapsed time and pulse counter for each channel
Pulse function: Automated switch OFF timer up to 59:59 (mm:ss)
Security by PIN coding
PC programming package (stock no. 453-934) and Data-key (stock no. 453-930) enable progam management and data back-up

Note

PC programming package and Data-key are not supplied and must be ordered separately, see accessories

Muller Time Switch

The Finder interface relay module is an innovative, ultra-compact electromechanical device equipped with a 24VAC/DC coil and a DPDT 2 C/O contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus, optimising your panel installation. This solid-state relay module has a small footprint that makes it ideal for applications where space-saving is essential.

Features and Benefits

• DIN rail mounting
• Minimum interval of 1 minute
• Switching capacity is 16A
• Time base is quartz crystal
• Permanent by date-mode (holiday function)
• Permanently ON or OFF with manual switch (perm ON/OFF)
• Manual override
• Automatic sorting of switching times on readout
• Unrestricted block programming of days
• Fully automatic daylight saving time
• Elapsed time and pulse counter for each channel
• Security by PIN-coding
• Screw terminal connection
• Operating temperatures range between -10°C and 55°C

Applications

• Ideal for outdoor and street lighting
• Control of lighting, heating and ventilation

Certifications

• IP20 rated
• DIN EN 60529

Remotely Programmable

Programmable time switch SC 28.X1 pro Data Sheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
