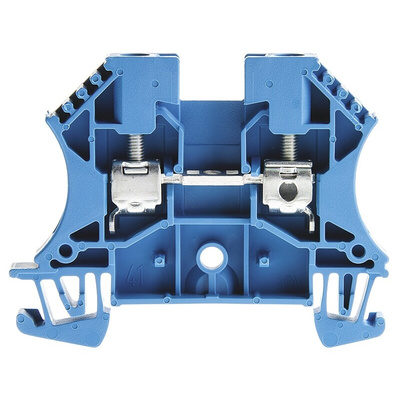

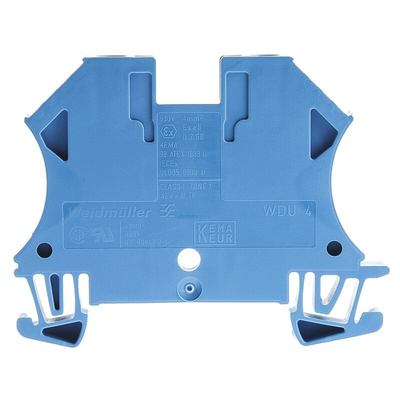

1020180000, Weidmuller WDU Series Blue Feed Through Terminal Block, 4mm², Single-Level, Screw Termination, ATEX

Weidmuller Feed-Through Terminal Block, Open Side Panel, 8kV Rated Impulse Withstand Voltage - W Series - 1020180000

Need a trusty middleman to carry signals from cables to your DIN rail-linked component? Choose this feed-through terminal block from Weidmuller. Thanks to its durable Wemid housing, this piece of kit safely handles wear and impact in harsh industrial settings. A hefty rated impulse withstand voltage of 8kV means that your connected devices are safe and sound from any sudden power spikes.

Features & Benefits

• Snap-on DIN rail mounting is simple and tool-free to save you time and effort
• Current rating of 41A for use in high-power applications
• Compact dimensions of 60 (H) x 6.1 (W) x 46.5mm (D) make it a space-efficient choice
• Performs optimally in temperatures ranging between -50°C and +120°C, so it's tough enough for demanding environments

Applications

• Machine building
• Assembly lines
• Food production industry

How do I link wires to this terminal block?

To link wires to this unit, simply insert them into the device's screw clamps and fasten them. It takes cable sizes between 26 and 10AWG, so it's a versatile choice.

Approvals

1-10

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
