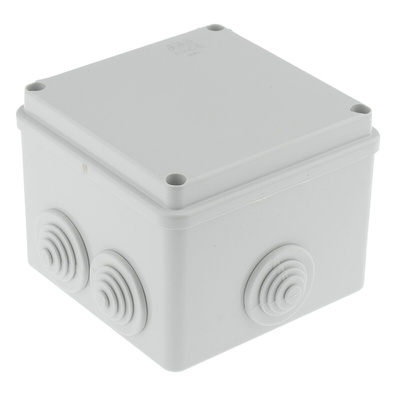

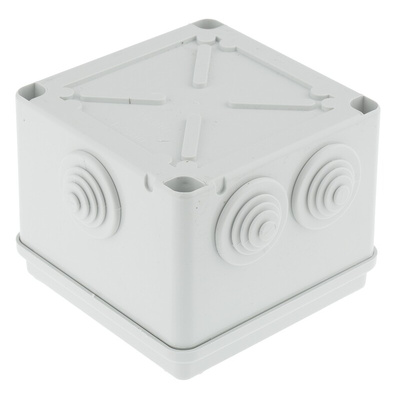

00821 M008210000, ABB Grey Thermoplastic Junction Box, IP55, 80 x 100 x 100mm

ABB Junction Box, Screw-On Lid, Heat-Resistant - 00821 M008210000

Looking for a way to protect your important connections while also keeping them accessible? The search ends with this junction box from ABB. With dimensions of 80 (H) x 100 (W) x 100mm (L), it's large enough to easily contain your wiring yet still compact to fit into areas short on space. To access the connections inside for maintenance, all you need to do is remove the screw-on lid.

Features & Benefits

• Robust IP55 protection against dust, solid objects and low-pressure jets of water
• Thermoplastic material is self-extinguishing and heat-resistant up to +650°C
• Unobtrusive grey colour blends into the surroundings
• Performs in a temperature range between -25°C and +60°C to suit challenging environments
• Four steel screws are included, so you're good to go

Applications

• Commercial construction
• Factories
• Engineering workshops
• Offices

Is this junction box UV-resistant?

Yes, so it's suitable for outdoor use. As it's also resistant to chemicals, you can be sure that your connections are safe even if there's a spill.

Can the box withstand impacts?

Yes. It's IK08-rated, so has been tested to withstand an impact the equivalent of a 1.7kg object being dropped on it from a height of 300mm.

IP 44- IP 55 and IP 65 junction boxes in thermoplastic material Data Sheet

Catalogue - Junction Boxes

Datasheet - 00821 M008210000
