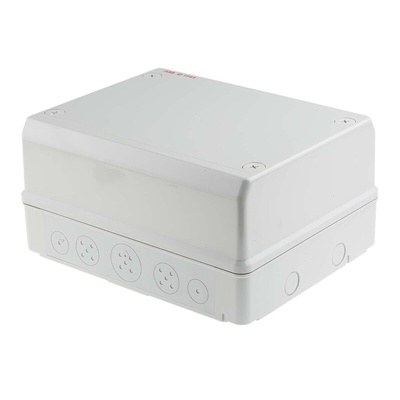

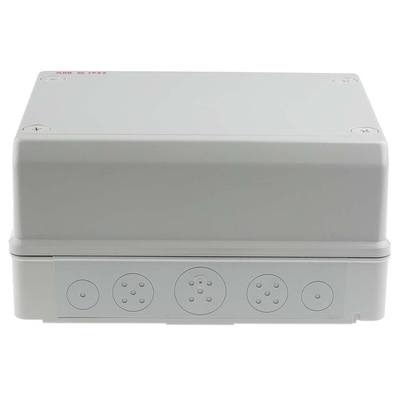

12812 M128120020, ABB Junction Box, IP65

IP65 Polycarbonate Adaptable Boxes

Introducing a range of professional quality, rugged junction boxes from ABB. These junction boxes are made from high-impact resistant (IK10) polycarbonate and feature heat resistance and fire resistance up to 960°C. Junction Boxes are also water resistant (IP65) and UV resistant. It means they can be used both indoor and outdoor. They are perfect for all-around professional solutions like connecting and protecting wiring that carries electrical currents.

Features and Benefits:
• Made from high-quality, high impact, temperature and UV resistant polycarbonate
• IP65 water resistance & IK10 shock resistance guaranteed
• Operating temperature from -25 °C to +115 °C
• Perfectly symmetrical junction boxes with a possibility of attaching the lid hinges, (using the special articulated screws supplied) on the right or left with 140° opening
• Available in RAL 7035 grey

Junction boxes are available in variety of sizes:
ABB 12816 Junction Box, IP65 275mm x 570mm (455-700)
ABB 12812 Junction Box, IP65 275mm x 220mm (455-706)
ABB 12808 Junction Box, IP65, 205mm x 220mm (455-712)
ABB 12814 Junction Box, IP65 275mm x 370mm (455-716)
ABB 12818 Junction Box, IP65 380mm x 570mm (455-750)
ABB 12804 Junction Box, IP65, 140mm x 220mm (455-756)

Optional mounting accessories:
ABB Mounting Plate for use with 12808 Box (455-734)
ABB Mounting Plate for use with 12814 Box (455-738)
ABB Mounting Plate for use with 12804 Box (455-740)
ABB Mounting Plate for use with 12812 Box (455-744)
ABB Mounting Plate for use with 12818 Box (455-790)
Universal Wall Mount (455-762)

Typical Application:
Junctions Boxes are primarily used in building construction and are designed to provide protection to wiring circuits and electrical connections for easy access. Boxes are usually made from metal or heavy-duty plastic and in most situations can be used both indoor and outdoor due to water and impact resistance.
Typically junction boxes are used for:
• Connecting additional sockets to circuits
• Adding lighting points
• Extending circuits
• Electricity circuit repairs

Approvals & Certification:
• IP65
• Insulation Class II
• IK10 (shock resistance up to 20 Joules)
• CEI 23-48
• IEC 60 670

FAQs:
Does this box come with terminal?
No, these boxes do not come with terminals.

What's included in the set?

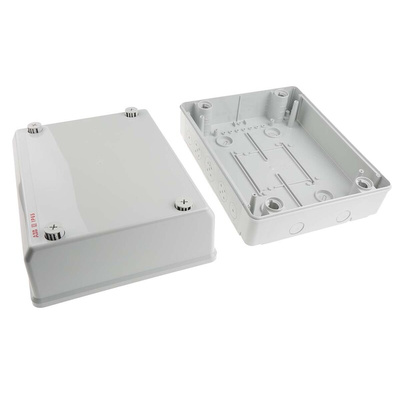

Boxes are supplied complete with:
• 4 screws
• accessories for attaching the hinges on the front
• 1 certification plate
• instruction sheet

ABB Junction Box, 2 Conduit Inlets, 20J Shock Resistance - 12812 M128120020

To keep your electrical setup running without a hitch, turn to this grey junction box from ABB. It's designed to protect wire splices and other connection points from damage caused by contaminants, weathering and vandalism. Polycarbonate material ensures the unit stays the course without suffering damage, even in harsh settings. A high insulation voltage rating of 1000V means it handles the demands of heavy-duty electrical systems. Screw on the blind cover and push in the neat screw caps to boost security.

Features & Benefits

• Compact dimensions of 220 (H) x 275 (W) x 140mm (D) for discreet installation
• Can be fixed to a wall or flat surface with an optional mounting plate (455-744)
• Resists UV radiation to deliver a long service life in outdoor applications

Applications

• Medical centres
• Manufacturing facilities
• Automotive workshops

Is this junction box waterproof?

Yes, the unit has an IP65 rating so it's dust-tight and protected from water projected strongly from a nozzle.

What's the net weight of this box?

It weighs in at a sturdy 1.192kg, meaning it's a reliably heavyweight contender.
