440N-G02045, Allen Bradley Guardmaster 440N Series Magnetic Non-Contact Safety Switch, 110V ac, Plastic Housing, NC, 2m Cable, Выключатель

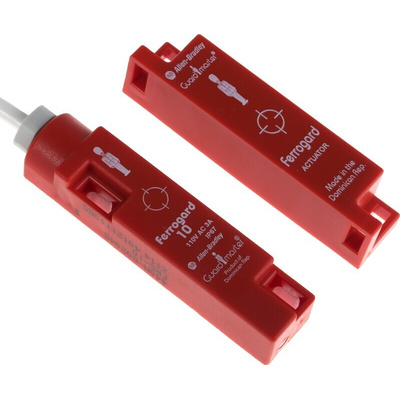

Allen Bradley Guardmaster Ferrogard 440N-G02045 Magnetic Non-Contact Switch

Ensure vital safe-access to dangerous machinery for personnel and keep your operations running smoothly with the Ferrogard 440N-G02045 Magnetic Non-Contact Safety Switch, 110Vac with ABS plastic housing, by Allen Bradley Guardmaster. This safety interlock device provides the well-known reliability of non-contact switches along with greater tolerance to door misalignment and movement with its wide sensing field. It also features internal non-resettable overload protection on the safety contact.

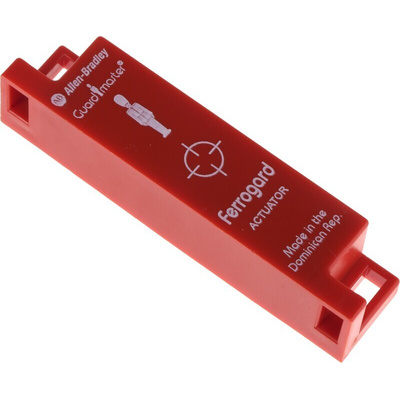

This cost-effective switch is specifically designed to be installed on machine guard doors. The magnetic actuator is withdrawn from the switch when the safety barrier is released. This opens the NC safety contact which then isolates power to the machine. This ensures that machinery cannot run until the guard is closed, ensuring that personnel cannot access a hazardous area and reducing risk of injury.

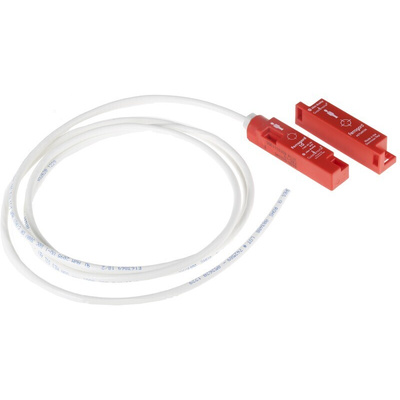

The Ferrogard 440N-G02045 magnetic safety switch has a supply voltage rating of 110V ac at 3A current, FR10 rectangular housings made of moulded ABS plastic, and a 2m cable. It has 1NC (Normally Closed) Safety Contact (no auxiliary contacts). It also has an operating temperature range of -10°C to +65°C and a sensing distance of 12mm (Make) to 23mm (Break). This switch is ideal for use on sliding, hinge, and lift-off machine guards.

Features and Benefits:

• Two sensing faces
• No control unit required
• Non-contact actuation - long lasting due to less wear-and-tear, simple set-up, guard door can be opened immediately
• High tolerance to misalignment due to large sensing field
• Perfect for use in hygiene applications and low to medium risk applications
• Red Moulded ABS Plastic rectangular housing
• High switching current
• Sealed to IP67 – fully protected against dust ingress and can withstand temporary immersion in water

Certifications:

EN954-1
IP67 rated
ISO13849-1
IEC/EN60204-1
NFPA79
EN1088
ISO14119
ANSI B11.19
AS4024.1
CE certified
UL listed

Allen Bradley Guardmaster have a broad range of machine monitoring components and safety switches to meet all your application requirements. Their products are affordable, high-quality, and built to global standards to help keep your operations running efficiently, protect your personnel and equipment, and optimise productivity.

What are the advantages of non-contact safety switches?

Non-contact safety switches are highly reliable and durable. They take less wear and tear and are low-maintenance, as well as resistant to shocks and vibrations. They cannot be easily manipulated or tampered with and are ideal for use with machine guards and doors to restrict access to unsafe areas. They are often used in industrial environments, such as in factory production lines. Allen Bradley Guardmaster are industry experts in machine safety devices and have an exceptional product portfolio to help you create your ideal safety system.
