T0052711899N, Weller Electric Soldering Iron, 24V, 100W, for use with WAD100, WAD101, WRS & WR3M Soldering Stations, Паяльник

HAP 1, 100 W, 24 V Soldering Iron / Hot Air Iron Soldering Set.

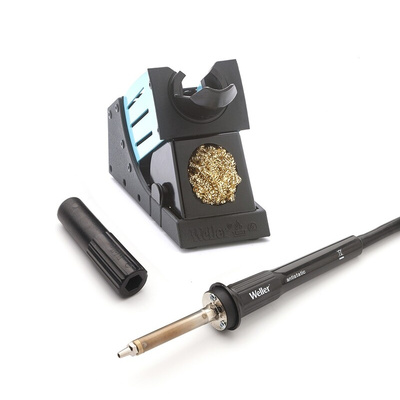

From Weller this is the HAP 1 Soldering Iron / Hot Air Iron Soldering Set providing you with the HAP 1 hot air iron, the WDH 30 safety rest with a dry top cleaner and an R04 hot air nozzle. The soldering iron has a temperature range from 50°C to 550°C providing you with a static free, adjustable, direct hot air flow of 10 litres per minute. The soldering iron has finger-tip controls on the comfortable to use handle plus the iron is ESD-Safe.

Features and Benefits.

• HAP 1 Hot air soldering iron set.


• Electric.


• Temperature range 50°C to 550°C.


• Ionic free air flow.


• Air flow rate 10 litres per minute (dependant on the tool).


• Adjustable temperature control, finger switch control.


• 24 V.


• 100 W.


• Tip range F, R, D, Q.


• WR Power supply compatible.


• ESD Safe.

What is Included?

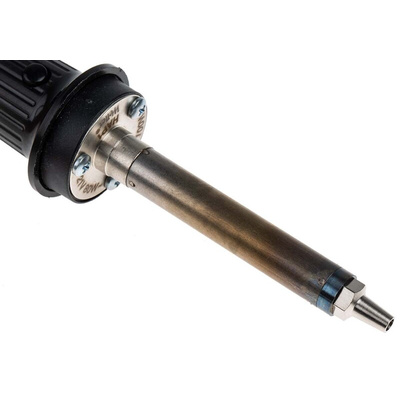

• HAP 1 Hot Air Soldering Iron.

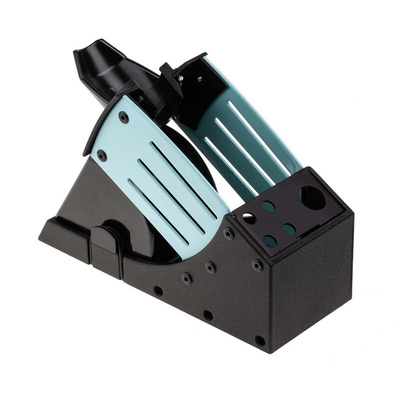

• WDH 30 Iron Safety Rest and tip dry cleaner, stock number 186258.


• R04 Hot air round nozzle, 1.2 mm, for HAP 1 and HAP 200 (stock number 135878).

Typical Applications.

• General soldering.


• Electrical.


• Maintenance.


• Repair.

Weller Solder Iron Tips / Hot Air Nozzles Available.

• Q04, 6 x 9 mm nozzle, stock number 186343.


• Q06, 15 x 10 mm nozzle, stock number 186191.


• Q02, 6 x 6.5 mm nozzle, stock number 186208.


• Q08, 12.5 x 15 mm nozzle, stock number 4205940.


• Q10, 18 x 18 mm nozzle, stock number 2094029.

We have in stock a wide range of Weller soldering, desoldering tips and hot air nozzles.

Other Weller Soldering Irons / Hot Air Irons Available.

• HAP 200, Hot air set and safety rest, stock number 178049.


• WXHAP 200 Hot air set and safety rest, stock number 8014735.


• WXHAP 200 Hot air soldering iron only, stock number 8014739.

Power Supply Units / Soldering Stations Available.

• WR 3M, 420 W Soldering station, stock number 186630.


• WR 3000, 360W Soldering station set, stock number 135862.


• WT 2M, 150 W Soldering station, stock number 1763371.


• WT 2010M, 150 W Soldering station, stock number 1763372.


• WT 2020M, 150 W Soldering station set, stock number 1763373.

57 Page ESD Control Selection Guide

Datasheet T0052711899N
