RS PRO Cable Mount XLR Connector, Male, 5 Way, Разъем

Plastic Backshell Cable Mount Connectors

Cable mounting plugs and sockets with plastic backshells. Incorporated are an anti-vibration collar and are inter-mateable with the standard and universal chassis mount plugs and sockets.

Warning

Not to be used as a mains connector.

RS PRO Cable Mount Connectors with Backshell

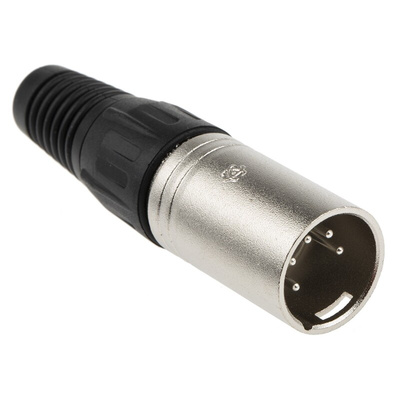

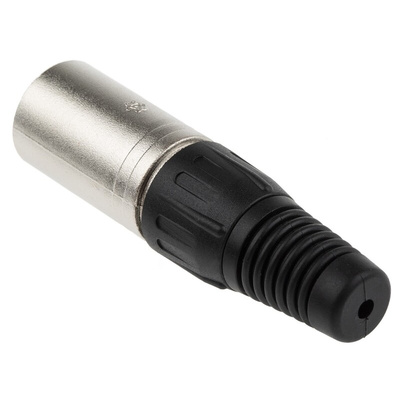

We are proudly introducing our own branded RS PRO Audio/Video XLR Connector for professional use in your studio or on the stage. The XLR 5 Pin Male is a precision, compatible Connector made with zinc diecast bodies, silver-plated containing solid brass turned contacts.

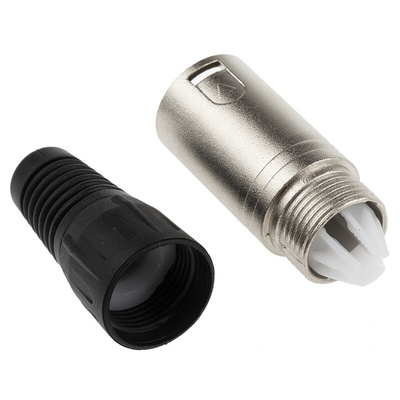

For secure, durable connections, this XLR Male has the "squeeze" release clip, meaning plugs and sockets security for unexpected unplugging with a simple push-down device. The wiring and assembly is a straight-forward operation and can accommodate cable diameters ranging from 2.8 mm up to 8.00 mm providing a sufficient cable grip.

This XLR has incorporated anti-vibration collar and are inter-mateable with standard and universal chassis mount plugs and sockets.
It is worth to mention that Solder Tags incorporate hole for improved retention and reliability of the connection. Both Male and Female versions are available to provide balanced audio signal level applications, which is an essential part of delivering line-level signal with no loss of quality over long cable distances.

Features and Benefits

• Five-way Male Pin Connector provides an easy assemble with outstanding cable precision.


• Versatile usage for many electronic devices to create the exceptional audio balanced cable.


• Impressive quality sound with a voltage rating of 250 V ac.


• The high-quality material used, such as zinc diecast body, silver-plated and solid brass turned contacts.


• Outstanding temperature tolerance of -30°C up to +80°C is making a powerful XLR Cable system to use in challenging environments.


• Checked and approved by our engineers, giving you full confidence when purchasing our range of Connectors.


• Practically always in stock and free to dispatch it at any time.

Applications

XLR (External Line Return) Connector is synonymous of high-quality passage from sizeable electrical current to provide a robust connection for most audio devices available on the current market. The most common tolls are speakers, amplifiers, microphones, mixing boards, and other recording equipment.

XLR Connectors are must-have parts being indispensable for:

• XLR in Lighting Control Applications


• XLR Connectors in Speakers


• Connectors audio signal in Mixing Boards


• XLR Microphones plug Connector


• XLR Male for musical instruments


• XLR Connectors in acoustic sound applications


• Male Connector in loudspeakers


• Outstanding cable Connector for LED screens

Frequently asked questions

How to clean XLR Connectors safely and correctly?

In general, the tolerance to dirt or contamination for XLR Connectors is relatively low; however, regular inspections and cleaning like for any other electrics is essential. We are recommending using our tested RS PRO electrical contact cleaning equipment 917-5914 or 554-298.

Using swabs or cloths might decrease contact performance and lifespan of the Connector; therefore, it is vital to use checked and approved cleaning solutions.

What is the difference between Male and Female Connectors?

A Male Connector has solid pins (usually between 3-pin to 7-pins) whereas Female Connector has central conductor with a-holes.

Why RS PRO?

RS PRO is our family brand to go-to and brings you a wide range for high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we are confident of their exceptional quality, which means you can be convinced too.

Warning
type":"Warning",

Do not use as mains Connectors
