RS PRO SPDT Thermostats, 4A, 250 V ac, +5 → +30 °C, Термостат

RS PRO Mechanical Room Thermostat, minimum temperature +5° to maximum temperature +35°

Manual Thermostat might be perceived as an old school heating boiler to control the temperature. It does not have much to do with the Smart Thermostat qualities, but the installation or repair quite often does not require a specialist to visit your home, school or public area.

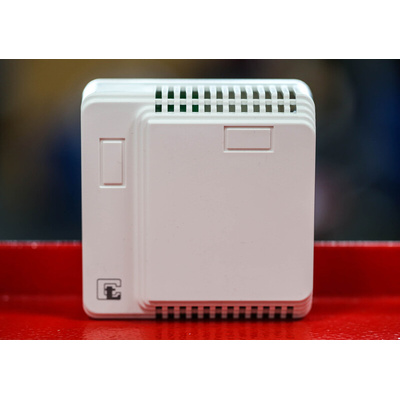

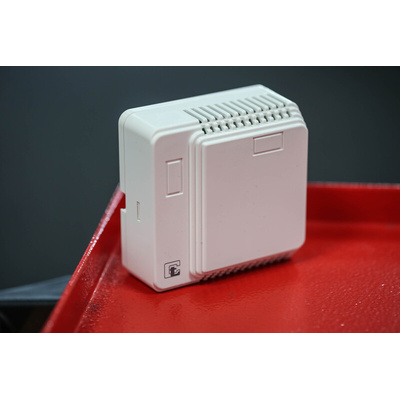

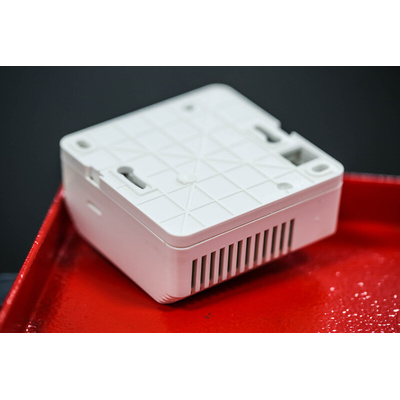

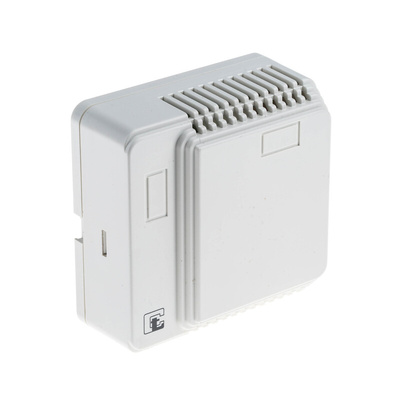

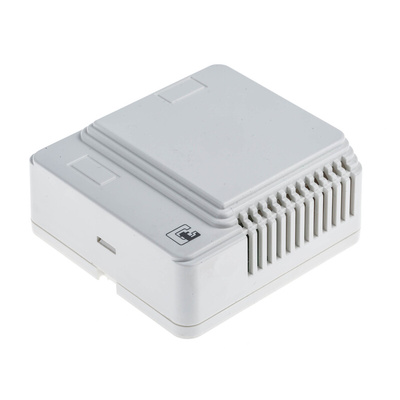

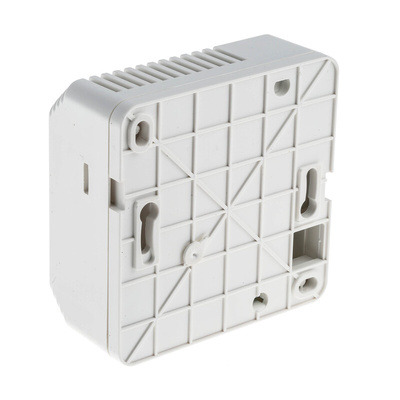

Today, we are proudly introducing our own branded RS PRO Tamperproof Room Thermostat with setpoint adjustment ranging from +5°C up to +35°C, which is an excellent solution for a school where maintaining a desirable temperature is crucial.

The surface mounting of our Thermostat with a thermoplastic front cover is suitable for industrial and commercial applications. These Mechanical Thermostats are fitted with a shunt accelerator heater to ensure low switching differential and to avoid overshoot at the same time.

The recognisable temperature adjustment control and a temperature set-back of approximately 6°C are particularly useful where frost protection is required.

Features and Benefits

• Full price transparency - including VAT and excluding VAT


• The Thermostat provides automatic temperature control


• The Tamperproof Thermostat has the following dimensions 82 (Height) x 82 (Width) x 33 (Depth) mm


• Our Tamper Proof Control is differential at 0.5 degrees C


• Surface mount Tamper-Proof has accelerator heater of 220-250 V ac


• 10 Amp resistive (contact opening) at 250 V ac


• 3 Amp resistive (contact closing) at 250 V ac


• The Room Thermostat comes with a 3-year warranty

Applications

These heating Tamper Proof Covers are designed to keep the temperature under control; therefore, they are commonly used in:

• Public areas, such as schools, universities, nursery schools, care homes or in private homes

Why RS PRO?

RS PRO is our own-brand range of great-value products. Each part of every RS PRO product is stringently tested against demanding industry standards. We give it our seal of approval only when we're confident of exceptional quality. That's why RS PRO is trusted by engineers worldwide.

Installation Instruction Manual
