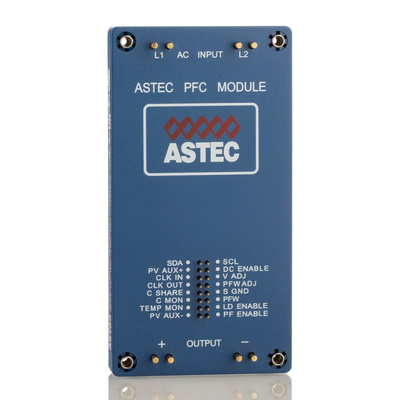

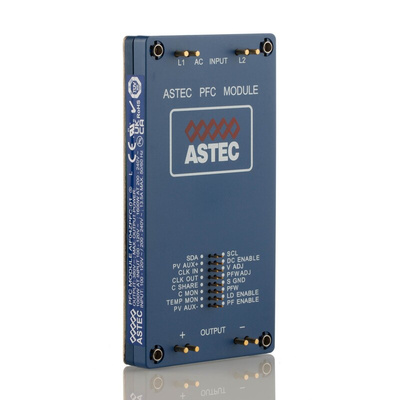

AIF04ZPFC-01L, Artesyn Embedded Technologies, 1.6kW Embedded Switch Mode Power Supply SMPS, 380V dc, Encapsulated, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

The Artesyn Embedded Technologies embedded switch-mode power supply from the AIF-PFC series is a 1600W low profile PC module designed to reduce product development time and enhance system performance. The device works on overall typical line voltages used worldwide and provides unity power factor with very low levels of harmonic distortion in line current. The PFC includes active start-up current control. The power line disturbance (PLD) circuitry copes with a wide range of input voltage fluctuations. It has a universal input supply voltage rating range from 85VAC to 264VAC or 120VDC to 370VDC.
Note:
MTBF to MIL-HDBK-217F.

Features and Benefits

Adjustable output voltage by using external resistors in the range from 380VDC to 393VDC
Control and monitoring functions (remote enable and current and temperature monitoring)
Encapsulated package type

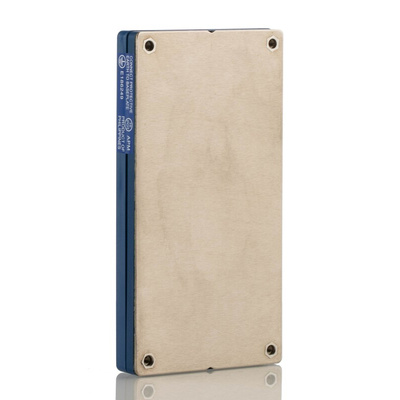

Fully encapsulated with aluminium baseplate for conduction cooling
High efficiency is up to 95%
Input current harmonics meets
Low profile power supplies designed for use with Astec high power AIH and AIF series DC-DC converters
Near unity power factor correction
No input/output isolation, input/base-plate and output/base-plate 2.7kVDC
Overvoltage and over temperature protection
Parallel able with accurate current sharing, the total input current must not exceed 16A
PCB mount
Power fail warning signal
Solder pins for PCB mounting
Threaded inserts 4xM3, for secure mounting
Under voltage

Certifications

cUL 60950
EN61000-3-2 class A
TUV EN60950
UL 60950
UL94-V0 (full brick plastic case)
