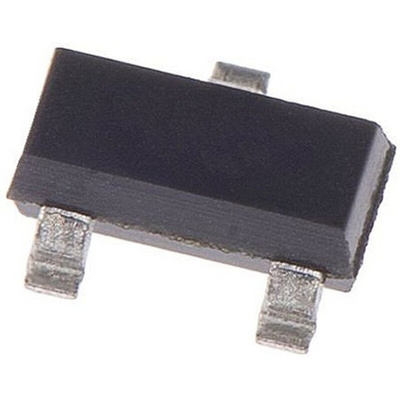

onsemi NUP2105LT1G, Dual-Element Bi-Directional TVS Diode, 350W, 3-Pin SOT-23, Диод

NUP2105L, NUP3105L Dual Line CAN Bus Protector

ON Semiconductor NUP2105L/NUP3105L dual-line CAN bus protectors are designed to protect the CAN transceiver in high speed and fault-tolerant networks from ESD and other harmful transient events. They will provide bi-directional protection for each data line as features the compact SOT-23 package which helps system reliability and meets stringent EMI requirements.

Features

3350W Peak Power Dissipation per Line

Low Reverse Leakage Current (< 100nA)

Low Capacitance High-Speed CAN Data Rates

IEC Compatibility:

IEC 61000−4−2 (ESD): Level 4

IEC 61000−4−4 (EFT): 40A – 5/50ns (50A - 5/50ns for NUP3105L)

IEC 61000−4−5 (Lighting) 8A (8/20μs

Flammability Rating UL 94 V−0

SZ Prefix for Automotive and Other Applications Requiring Unique

Site and Control Change Requirements; AEC−Q101 Qualified and

PPAP Capable

Applications

-Smart Distribution Systems (SDS)

- Industrial Control Networks

Automotive Networks

- High and Low speed CAN

- Fault-Tolerant CAN

Transient Voltage Suppressors, ON Semiconductor
