NC4FDL1, Neutrik Panel Mount XLR Connector, Female, 50 V, 4 Way, Silver Plating, Разъем

Neutrik XLR Connector

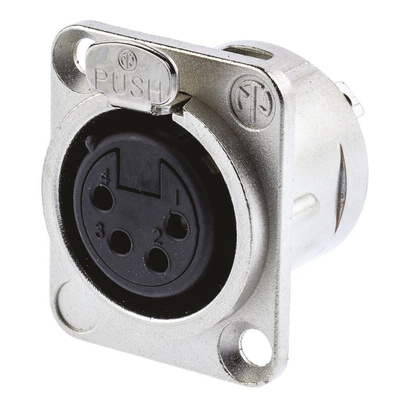

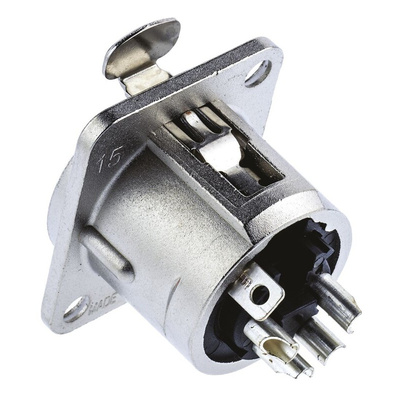

The Neutrik 4-contacts female XLR connector has a voltage rating of 50V and a current rating of 16A. This connector has a silver over nickel plating. This panel-mount XLR connector can be mounted in either the front or rear of a panel. With a simple screw mount frame, this XLR connector is easy to install and features a locking mechanism that ensures reliable mating.

Features and Benefits

Delivers balanced microphone and line-level signals over long distances
Metal shell offers RF protection
Operating temperature ranges between -30°C and 80°C
Robust "D" metal shell
Solder cups for easy termination
Standardized D sized 24mm panel cut out

Certifications

UL approved

X L R C o n n e c t o r s

Technical Drawing
