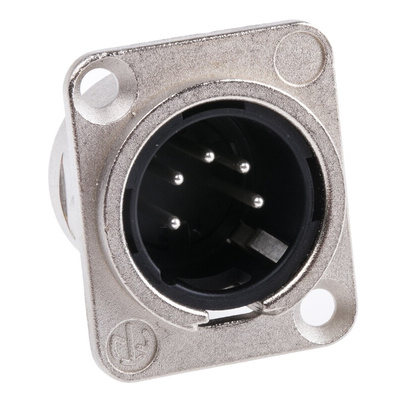

NC5MDL1, Neutrik Panel Mount XLR Connector, Male, 50 V, 5 Way, Silver over Nickel Plating, Разъем

Neutrik XLR Connector

The Neutrik DL series male XLR connector has 5-pole with silver over Nickle-plating. It has a current rating of 7.5A with a voltage rating of 50V. This panel mount XLR connector can be mounted in either front or rear of a panel. With a simple screw mount frame, this XLR connector is easy to install and features a locking mechanism that ensures a reliable mating.
Warning:
Not to be used as mains connectors.

Features and Benefits

Delivers balanced microphone and line-level signals over long distances
Pin-1 and panel and shell connected, no separate ground contact
Metal shell offers RF protection
Robust "D" metal shell
Solder cups for easy termination
Housing material is zinc
Operating temperature ranging between -30°C and 80°C

Certifications

UL approved

X L R C o n n e c t o r s

Technical Drawing
