CTF100.00500, Belden SDI Coaxial Cable, 500m, RG6/U Coaxial, Unterminated, Кабель

CTF100

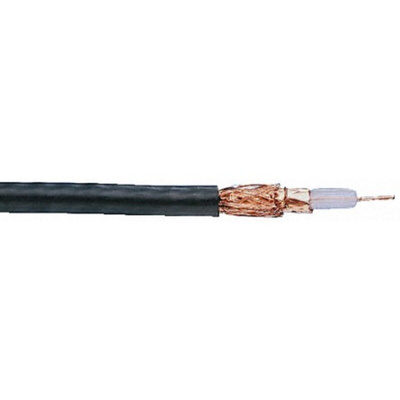

1 / 1.0mm high conductivity copper conductor
Gas injected foamed PE dielectric
High conductivity polyester and copper foil with braided screen
Black PVC outer sheath
Suitable as a Drop/Subscriber Feeder Cable
Connector / Cable group L

Belden Coaxial Cable, 6.65mm OD, Polyethylene Insulation - CTF100

Transmit radio frequency signals in your network with this single-strand coaxial cable from Belden. Its 0.96mm-wide centre conductor is made from soft annealed copper for rapid data transfer. As the cable is unterminated and comes with ample length, you can cut and terminate it according to your system's needs. Thanks to a broad operating temperature range between -40°C and +70°C, this is a suitable choice for use in demanding environments.

Features & Benefits

• 75Ω characteristic impedance, so it's suited for video signal transmission
• Chemical-resistant PVC sheath for safe use in contaminated environments
• Braided screen to prevent signal interference for greater transmission reliability

Applications

• Televisions
• Satellite antenna facilities
• Internet signal transmission

Can this cable transmit internet signals?

Yes. As indicated by its RG6/U rating, this cable is shielded and has a large conductor. It ensures high connection quality and is designed to carry GHz-level signals effectively. These features make it suitable for the higher demands of internet transmissions.

Standards

BS EN50117

CT Digital Coax

The 'CT' range of broadband low loss coaxial cable meets the European standard BS EN50117. Designed to offer ideal electrical parameters for the reception of digital TV either via satellite or terrestrial transmissions. Recommended for use in installation for the reception of both Sky & other digital/analogue TV providers. In addition these cables may be suitable for use in video transmission & camera control applications in CCTV systems.

Cable Selection Guide

Datasheet - CTF100.00500
