Crimp Two Piece Contacts
Use plier or ratchet style tool to crimp contacts.
Current rating (single contact in isolation) 13A
Initial contact resistance 5mΩ
Contact area selectively gold plated
Crimp area tin plated
Up to 200 mating cycles

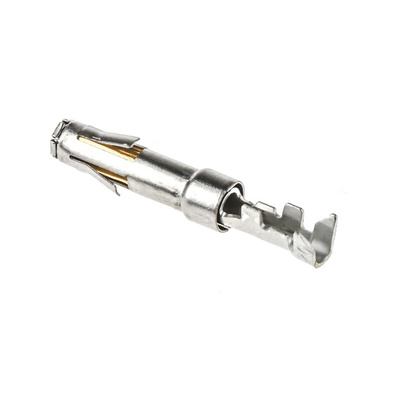

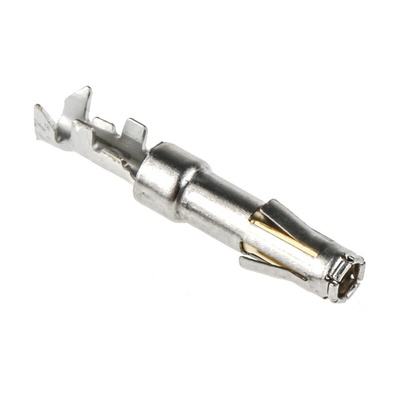

ITT Cannon Socket Contact
The ITT Cannon T2P series female socket contact has wire size ranging between 20AWG and 22AWG. This contact is made of brass and has gold plating. It can be used with the Trident T2P contact system.
QM range contacts and tooling
The current rating quoted is for a single contact pair in isolation. When more than one pair of contacts in a connector is carrying appreciable current, the maximum permissible current per contact must be reduced to take the cumulative heating effect into account. This multi-way de-rating factor is established from similar factors established for multi-core cables.
Features and Benefits
Current rating is 13A
Initial contact resistance 5mohm
Contact area selectively gold plated
Up to 200 mating cycles
Cable mount
Crimp termination
Operating temperature ranging between -55°C and 125°C
QM Range Contacts and Tooling
The current rating quoted is for a single contact pair in isolation; when more than one pair of contacts in a connector is carrying appreciable current, the maximum permissible current per contact must be reduced to take the cumulative heating effect into account. This multi-way de-rating factor is established from similar factors established for multi-core cables.
