701550/181-000-23/000, Jumo di 308 LCD Process Indicator, 48mm x 96mm, Многофункциональный измеритель

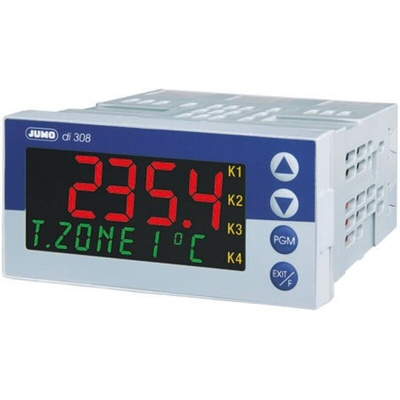

Jumo Digital Indicator

The Jumo digital indicator is shows temperatures in units like °C or °F and standard signals in plain text. It has 3 expansion slots that can be filled with additional inputs, outputs and interfaces. The high-contrast, multicolour LCD is used for presenting measurements and for operator prompting. It consists of a 5-digit, 7-segment display (for the measurement or for setting parameters) and an 8-character, 16-segment display with colour changeover (for the value, parameter name, channel name, process/alarm text as a running text of maximum 24 characters, or a pseudo bar graph). An RS422/485 or a PROFIBUS-DP interface can be used to integrate the instrument into a data network.

Features and Benefits

Configurable process display text, maximum 24 character ticker
Universal input for analogue signals
Can be expanded with optional modules
Setup programme for quick and easy configuration
4 switch status indicators for the binary outputs
4 limit comparators
Supply voltage rating is 110VAC to 240VAC
Fast and convenient configuration through setup program
Cut-out height of 48mm, width of 96mm and depth of 105mm
Three option slots
Electrical connection is made at the back via screw terminals
DIN installation housing

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
cRUus certified
EN 61010, Part 1
EN 61326-1 Class B
IP65 rated (front)
IP20 rated (back )

JUMO di 308 Indicator Data Sheet
