Burkert Solenoid Valve 134433, 2 port(s) , NC, 230 V ac, 1/2in, Клапан

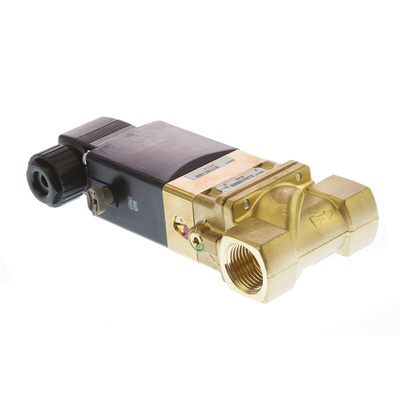

Burkert Solenoid Valve

The Burkert 2-port 1/2in G female solenoid valve is especially characterised by its design in which there is fluid separation is done by the inclusion of a diaphragm seal in the pilot valve. This enables the coil to remain protected from the effects of challenging applications. It is less sensitive to dirty fluids. This valve is corrosion resistant due to a separating diaphragm. It is suitable for use with neutral gases and liquids.
Product Application Information:
This range of Burkert solenoid valves satisfies the European standards for drinking water.

Features and Benefits

Supply voltage is 230VAC
Flow factor (Kv) is 4m³/h
Maximum working pressure is 10bar
Servo-assisted diaphragm valve up to DN65 orifice
Long-life solenoid system
Highly reliable
Opening and closing time are controlled by integrated restrictor screws
Lockable manual override as standard
NBR seal material
Power consumption is 8W
Operating temperature ranging between 0°C and 55°C

Certifications

IP65 rated

Datasheet
