Burkert Solenoid Valve 425285, 3 port(s) , NC, 24 V dc, 1/4in, Клапан

Burkert Solenoid Valve

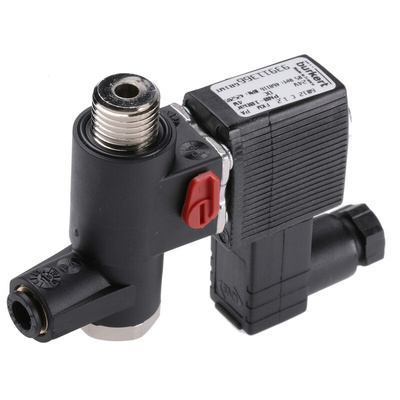

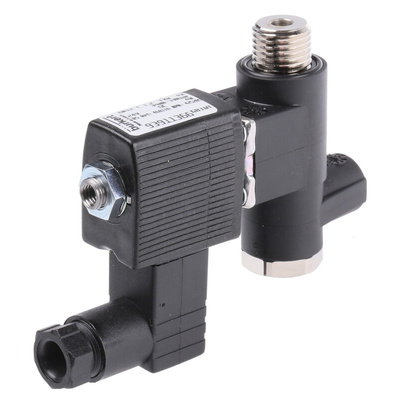

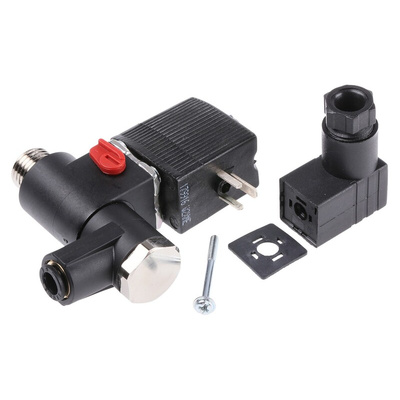

The Burkert 6012P series 1/4inG female solenoid valve has a supply voltage of 24VDC. This 3-port NC position valve is a screwed coil system with FKM seal. It has Banjo threaded connection for direct mounting on pneumatic valves. Its maximum opening and closing time are 12ms and 12ms. It is suitable for compressed air, water and hydraulic oil.
Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the operation of the valve when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and this is described on the right-hand side of the diagram, see the typical schematic diagram below. The 3//2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2//2-way valves as two-way. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications will indicate the appropriate connections and pressure capabilities should an alternative circuit function be required.

Features and Benefits

Flow factor(Kv) is 0.045m³/h
Maximum working pressure is 10bar
Power consumption is 4W
Direct-acting, compact valve with diameter of up to DN 1.6
Coil changed easily with valve in place
Coil can be locked in four by 90° positions or move free between, as required
Simple and quick push-in, flange, or manifold installation
Operating temperature ranges between -10°C and 55°C

Certifications

IP65 rated

6012 3/2-way Mini Solenoid Valve Data Sheet
