Burkert Flow Controller

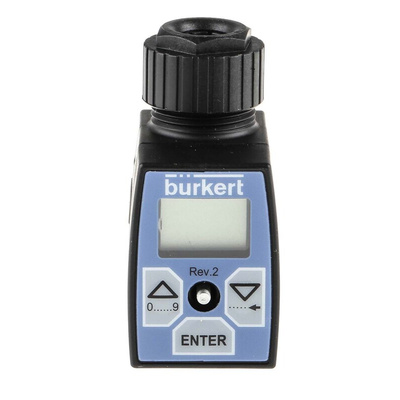

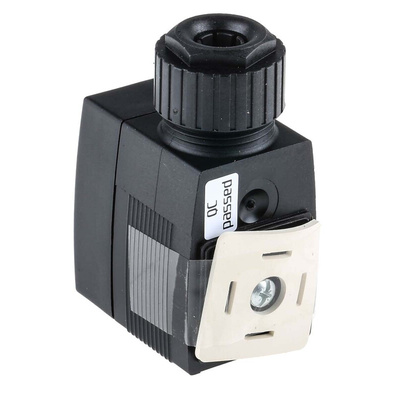

The Burkert flow controller module has a PWM control output and cable plug type electrical connection. It operates solenoid valves in the power range from 40mA to 2000mA. It has input signal options of 0-20 mA, 4-20mA or 0-5V, 0-10 V (configurable). The electronics converts an external standard signal into a pulse-width modulated (PWM) signal with which the opening of the valve and hence a fluidic output parameter (e. G. flow rate) can be infinitely varied. Its operating voltage ranges between 12VDC and 24VDC.
2-way valves and control modules:
Valves and control modules designed specifically to operate together, provide a valve opening which is proportional to the input signal and allows this to be correlated to the respective operating conditions.

Features and Benefits

Microprocessor-controlled electronics
Compensation of the solenoid coil heating by internal current control
Configurable ramp function
Adjustable zero point shutdown
Residual ripple greater than 5%
Display and buttons
Output current 2A maximum
Selectable input signal
RS232 or RS485 interface (with auxiliary module)
Infinitely variable PWM frequency
Simple adaptation of the minimum and maximum current (start of opening and full opening) to the actual pressure conditions
Voltage tolerance is ±10%

Applications

Industrial use
Process control applications

Certifications

DIN EN 175301-803
