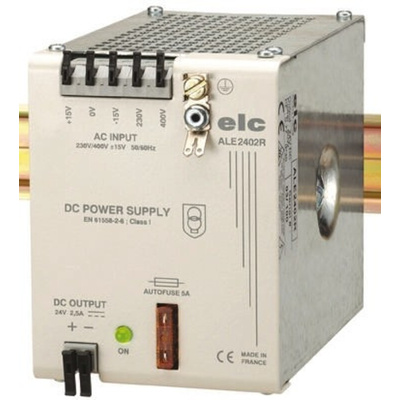

ALE2402R, ELC ALE Linear DIN Rail Panel Mount Power Supply 230 → 400V ac Input Voltage, 24V dc Output Voltage, 2.5A Output, Блок питания

ELC DIN Rail Power Supply

The ELC ALE series DIN rail linear power supply has a universal input voltage ranging between 230VAC and 400VAC. It is a modular, filtered and rectified OEM power supply with floating outputs on a spring terminal with a lever. The rated output current is 2.5A at 24VDC output voltage. This power supply features short-circuit protection via a secondary fuse and toroidal safety transformer (SELV) for high efficiency.

Features and Benefits

LED status indicator
Lightweight and small in size
Operation temperature ranging between 5°C and 55°C
Power consumption is up to 75W
Ripple factor and noise is ±5%
Spring terminals for 2.5 mm² wires

Applications

Automation and process control
Industrial controls
Power management

Certifications

CE certified
EN61558-2-6
IP30 rated
