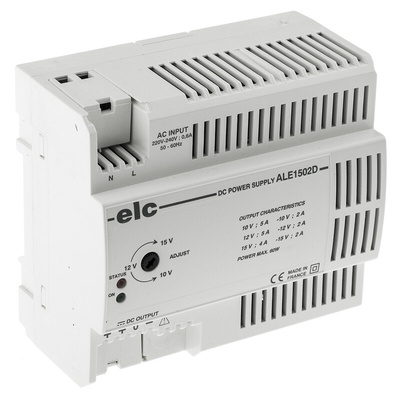

ELC DIN Rail Power Supply
The ELC ALE series DIN rail linear power supply has a universal input voltage ranging between 190VAC and 264VAC. It is a fixed, modular and symmetrical output regulated OEM power supply with floating outputs. The rated output current is 5A at 12VDC/4A at 15VDC output voltage. Adjustable output voltage ranging between 10VDC and 15VDC. This power supply is suitable for integral symmetrical DIN rail clips.
Features and Benefits
Adjustable output voltage
LED status indicator
Operation temperature ranging between -25°C and 60°C
Overload and short-circuit protection
Power rating is up to 60W
Pull-out screw terminals for 2.5 mm² wires
Ripple factor and noise is 3mV
Applications
Automation and process control
Industrial controls
Power management
Specifications
Technology: Switch Mode
Class: II
Primary Voltage Rating: 220-240V ±10%
Safety Standards
EN 61010-1, EN 61010-2-201, EN 62368-1
EMC Standard
EN 61000-6-2/4
Техническая спецификация
