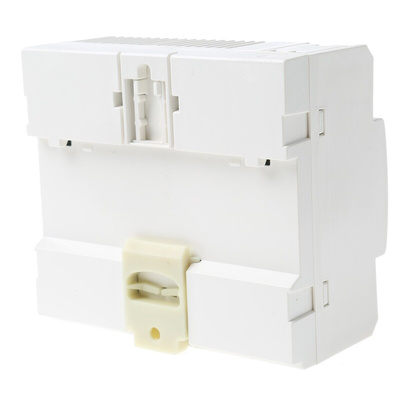

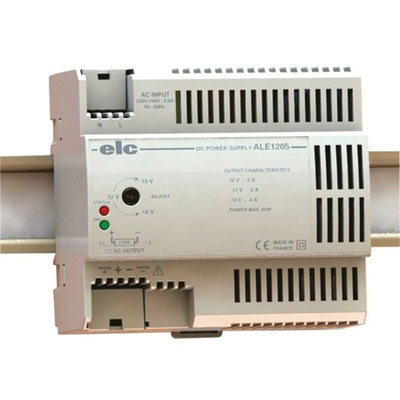

ALE1205, ELC ALE Linear DIN Rail Panel Mount Power Supply 190 → 264V ac Input Voltage, 12V dc Output Voltage, 5A Output, Блок питания

ELC DIN Rail Power Supply

The ELC ALE series DIN rail linear mode power supply has a universal input voltage ranging between 190VAC and 264VAC with an adjustable remote control output voltage. The remote sensing is used to overcome the voltage drop in the power lines. The rated output current is 5A at 12VDC output voltage. Adjustable output voltage ranging between 10VDC and 15VDC.

Features and Benefits

Adjustable output voltage
LED status indicator
Operation temperature ranging between -25°C and 60°C
Overload and short-circuit protection
Power rating is up to 60W
Ripple factor and noise is 3mV
Screw terminals for a 2.5 mm² wire

Applications

Automation and process control
Industrial controls
Power management

Certifications

CE certified
EN 61000-6-2
IP30 rated
