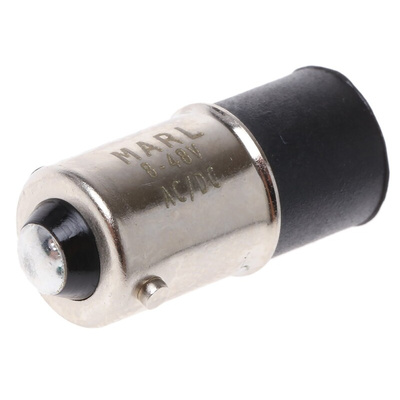

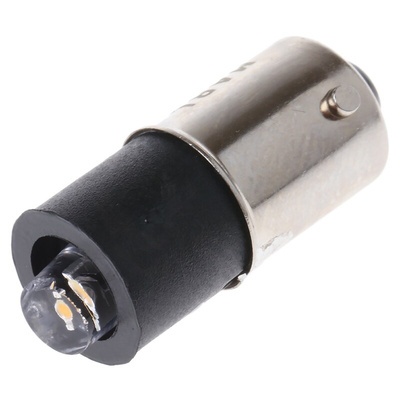

255-993-64-38, Marl White LED Indicator Lamp, 48V ac/dc, BA9s Base, 4.9mm Diameter, 9200mcd, Светодиодная лампа

T3 BA9s MBC Ultra-Bright SOLO, 255 Series

Design allows consistent optimum brightness levels due to internal intelligent circuitry
Bipolar - operates at any voltage between 8 and 48Vac/dc
Minimal power consumption with low heat generation
High reliability - MTBF 100 000 hours
Internal potting provides shock and vibration resistance

Note

These LED’s should only be used with suitably rated lampholders. Live parts should be inaccessible when in use. 110Vac LED’s cannot be used with a dropper resistor on 230Vac

MARL, Single Chip LED’s

A series of ultra-bright, sunlight-readable, water-clear LED’s suitable for a variety of applications. Specially manufactured lens provides a very wide viewing angle and high intensity output. Intensities are stated at the following viewing angles for the LED’s: Red 30°, Green 15°, Yellow 16°, Blue 15°, White 45°.
