RS PRO Straight Through Hole PCB Header, 26 Contact(s), 2.54mm Pitch, Разъем

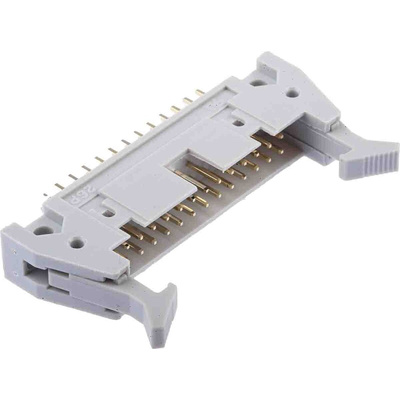

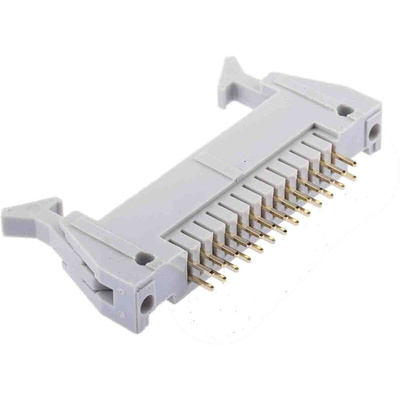

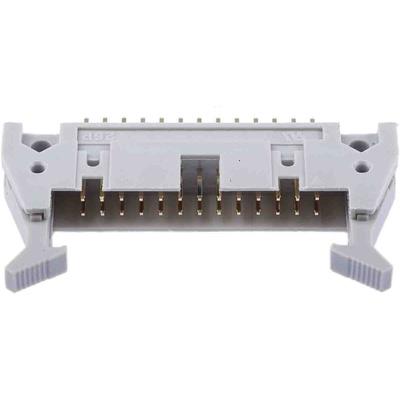

RS PRO 26-Way Straight PCB Header

Terminate flat ribbon cables in no time with this PCB (printed circuit board) header from RS PRO. It slices through a cable's insulation with ease and joins the wire to the connector, without any soldering required. This means it saves you both time and effort. As it can be connected to 26 different cables at once, it's also ideal for saving space.


This PCB header has a grey housing constructed from durable glass-fibre reinforced PET (polyethylene terephthalate). This material is also lightweight, so it provides protection without adding weight to your circuit. It's a strong electrical insulator, ensuring safety while the component is in use. The unit includes contacts made from brass and solder terminations for a robust and reliable connection.


The connector socket comes part-assembled for easy use. The universal ribbon cable sockets measuring 2.54 mm have an open design that allows additional appliances to be added to the circuit safely.

Features and Benefits

• Straight body orientation


• Brass contact material


• Gold contact plating


• Current rating of 1 A


• Male gender


• Glass-fibre reinforced PET (polyethylene terephthalate) housing material


• Operating temperature range of -45°C to +105°C


• Through-hole mounting type


• 26 contacts


• Pitch of 2.54 mm


• Solder termination method

Approvals

Sockets UL (E153329); Headers UL (E119708)
