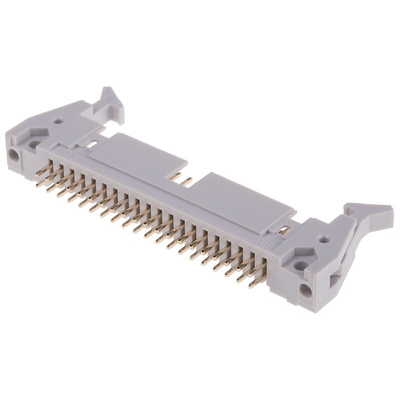

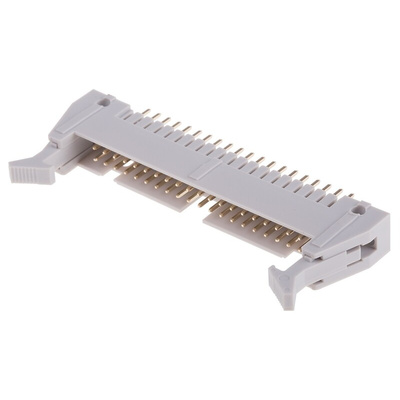

RS PRO Straight Through Hole PCB Header, 40 Contact(s), 2.54mm Pitch, Shrouded, Разъем

RS PRO, 40-Way, Straight PCB Header

This PCB header from RS PRO is designed to terminate flat ribbon cables quickly and efficiently. It cuts through a cable's insulation and will join the wire to the connector, saving you time and effort. It's also ideal as a space-saving solution as 40 different cables can be connected to it at once.


This PCB header has a glass-filled polyester housing that's durable and lightweight. This keeps the component protected without adding weight to your circuit. The unit includes gold contacts and a solder termination method for a robust and reliable connection.


The connector socket is supplied part-assembled. The 2.54 mm universal ribbon cable sockets have an open design that makes them suitable for daisy-chaining. This allows you to add additional appliances to the circuit safely.

Features and Benefits

• Straight body orientation


• Gold contact plating


• Current rating of 1 A


• Male gender


• PS housing material


• Operating temperature range of -45°C to +105°C


• Through-hole mounting type


• Four contacts


• Pitch of 2.54 mm


• Shrouded


• Solder termination method

Approvals

Sockets UL (E153329); Headers UL (E119708)
