RS PRO Straight Through Hole PCB Header, 50 Contact(s), 2.54mm Pitch, Shrouded, Разъем

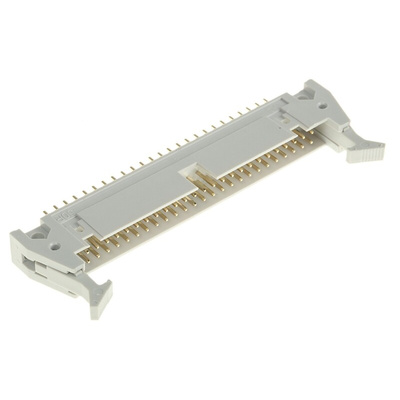

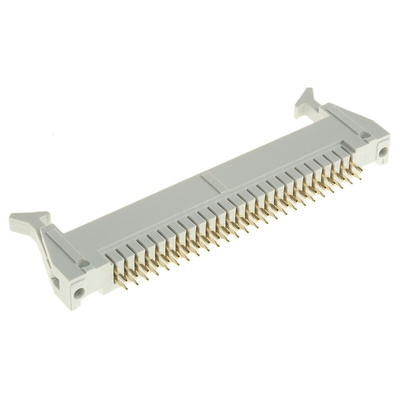

RS PRO 50-Way Straight PCB Header

Need to terminate flat ribbon cables? Use this PCB (printed circuit board) header from RS PRO for a time-saving way to cut through a cable's insulation and join the wire to the connector. As 50 different cables can be connected at once, it also saves space.


This PCB header has a thermoplastic housing that's robust and lightweight. This design protects the component without adding weight to your circuit. To ensure a reliable connection, the unit has gold-plated brass contacts and solder terminations.


The connector is supplied part-assembled for easy use. The 2.54 mm universal ribbon cable sockets have an open design that makes the unit suitable for daisy-chaining. This means you can add additional appliances to the circuit safely.

Features and Benefits

• Straight body orientation


• Brass contact material


• Gold contact plating


• Current rating of 1 A


• Male gender


• Thermoplastic housing material


• Operating temperature range of -45°C to +105°C


• Through-hole mounting type


• Five contacts


• Pitch of 2.54 mm


• Shrouded


• Solder termination method

Approvals

Sockets UL (E153329); Headers UL (E119708)
