RS PRO Yoke Cam Follower 6mm ID, 19mm OD, Опорный ролик

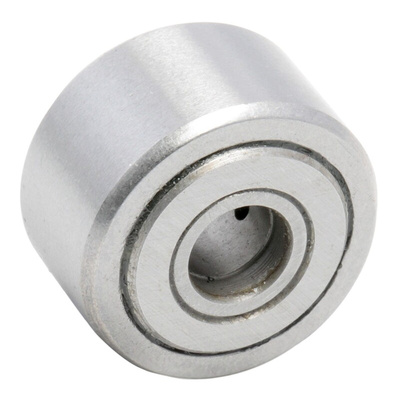

RS PRO Yoke Cam Follower 6 mm ID, 19 mm OD

This yoke cam follower from RS PRO is a specialised component that has been designed to follow cams and tracks in a wide range of motion systems. You'll typically find yoke cam followers of this kind used with weighty dynamic loads, as they help to reduce friction.
With a dynamic load rating of 4250 Newtons (N), you can rest assured that this component will cope well with larger loads. The construction of this bearing consists of a heavy outer ring and inner needle rollers that allow it to work smoothly around moving parts of machines.
This yoke cam follower can also rotate fast, with a maximum speed of 14,000 revolutions per minute (rpm) on grease and 20,000 rpm on oil, so you can use it for high-tempo operations.

Features and Benefits

• Yoke cam follower
• Bore size of 6 mm
• Dynamic load rating of 4250 Newtons (N)
• Static load rating of 4600 Newtons (N)
• Eccentric ring slide and track system bearing type
• Roller diameter of 19 mm
• Roller length of 12 mm

RS PRO Datasheet
