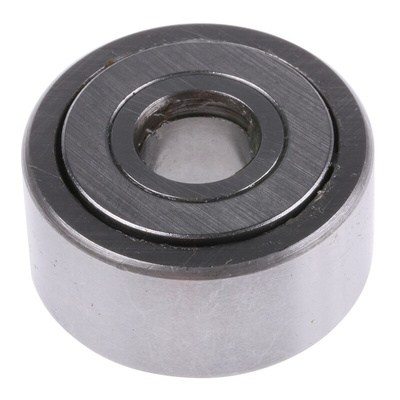

RS PRO Yoke Cam Follower 10mm ID, 30mm OD, Опорный ролик

RS PRO Yoke Cam Follower 10 mm ID, 30 mm OD

This yoke-type track roller from RS PRO is designed for following cams and tracks in a wide range of operations, including linear guidance systems. This specialised type of roller bearing can run on all types of tracks and can be used in conveyors and cam drives.


This component helps to reduce friction in linear movements by incorporating needle-style rollers between the stud and its thick outer ring. This ensures a smooth run around the moving parts of machinery. It has a dynamic load rating of 8100 N (newtons), so it can handle large and heavy loads. Thanks to its maximum speed of 7,700 rpm (revolutions per minute) on grease and 11,000 rpm on oil, this cam follower is well-suited to high-speed applications. For additional peace of mind, it comes with a three-year warranty.

Features and Benefits

• Bore size of 10 mm


• Dynamic load rating of 8100 Newtons (N)


• Static load rating of 9700 Newtons (N)


• Eccentric ring slide and track system bearing type


• Roller diameter of 30 mm


• Roller length of 15 mm

RS PRO Datasheet
